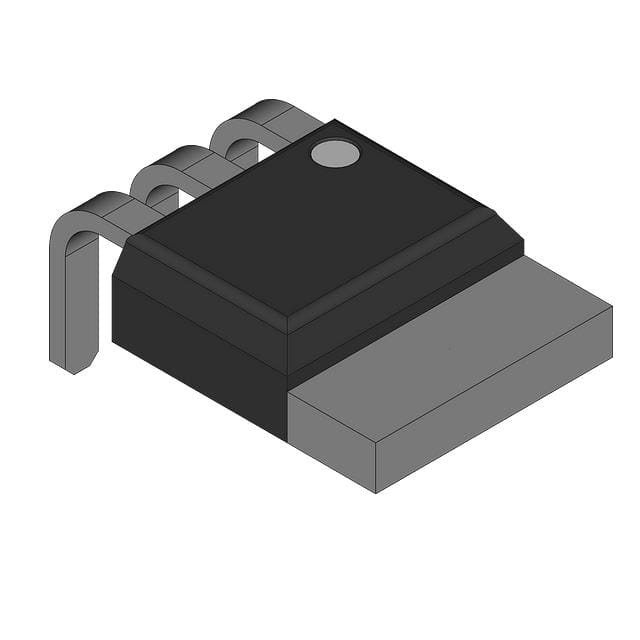

Image is for your reference only,please check specifications for details
- HUF75545S3 - Fairchild
-
Manufacturer:Fairchild
-
ManyChip's Part#:MC162198385
-
Category:MOSFET, MOSFET Transistor
-
Package:TO-262-3
-
Datasheet:Datasheet 3D Model
-
Description:МОП-транзистор N-канальный, 80 В, 75 А, 3 вывода (3+таб), корпус TO-262, в ленте
-
Stock Locations:
-
Availability:264 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.8
Updated at 22/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- N-канальный, 80 В, 75 А (при Tc), 270 Вт (при Tc), монтаж в отверстие, корпус I2PAK (TO-262)
HUF75545S3 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-262-3 |
| Voltage Rating (DC) | 80.0 V |
| Current Rating | 75.0 A |
| Drain to Source Resistance (on) (Rds) | 8.20 mΩ |
| Polarity | N-Channel |
| Power Dissipation | 270W (Tc) |
| Drain to Source Voltage (Vds) | 80 V |
| Breakdown Voltage (Drain to Source) | 80.0 V |
| Breakdown Voltage (Gate to Source) | ±20.0 V |
| Continuous Drain Current (Ids) | 75.0 A |
| Input Capacitance (Ciss) | 3750pF @25V(Vds) |
| Rating Power (Max) | 270 W |
| Power Dissipation (Max) | 270W (Tc) |
| Show | |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
