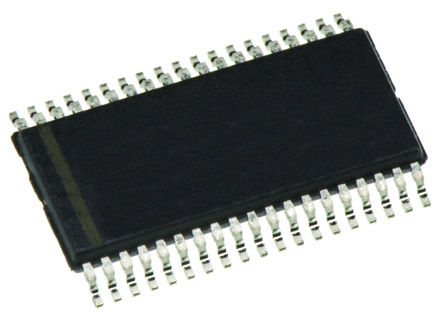

MSP430F2272IDA - TI
Manufacturer:
TI
ManyChip's Part#:
MC4607058
Category:
Microcontroller, MCU IC
Package:
TSSOP-38
Datasheet:
Datasheet 3D Model
Description:
MSP430 MSP430F2xx Microcontroller IC 16Bit 16MHz 32KB (32K x 8 + 256B) FLASH 38-TSSOP
Stock Locations:
Availability:
225 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7.75

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MSP430F2272IDA is a 16-bit ultra-low-power Mixed-signal Microcontroller features a powerful 16-bit RISC MSP430 CPU, 16-bit registers and constant generators that contribute to maximum code efficiency. The architecture combined with five low-power modes, is optimized to achieve extended battery life. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1µs. The device configurations with two built-in 16-bit timers, an universal serial communication interface, 10-bit A/D converter with integrated reference and data transfer controller (DTC), 32 general-purpose I/O pins. This device operates at a maximum frequency of 16MHz.
16-bit RISC architecture, 62.5ns instruction cycle time
Internal frequencies up to 16MHz with four calibrated frequencies to ±1%
Internal very-low-power low-frequency oscillator
32kHz Crystal
High-frequency (HF) crystal up to 16MHz
Resonator clock
External digital clock source
External resistor
16-bit Timer_A with 3 Capture/Compare registers
16-bit Timer_B with 3 Capture/Compare registers
Enhanced UART supporting auto-baudrate detection (LIN)
IrDA Encoder and decoder
Synchronous SPI
10-bit 200ksps ADC with internal reference, sample-and-hold, autoscan and data transfer controller
Brownout detector
Serial on-board programming
No external programming voltage needed
Programmable code protection by security fuse
Bootstrap loader
On-chip emulation module

Show

MSP430F2272IDA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	38 Pin
Case/Package	TSSOP-38
Frequency	16 MHz
Supply Voltage (DC)	1.80V (min)
Number of Positions	38 Position
Clock Speed	16.0 MHz
RAM Memory Size	1 KB
Number of Bits	16 Bit
FLASH Memory Size	32 KB
Number of UARTs	1 UART
Number of ADCs	1 ADC
FRAM Memory Size	0 B
Number of Inputs and Outputs	32 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.8 V
	Show
Size-Length	12.6 mm
Size-Width	6.2 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/06/15
