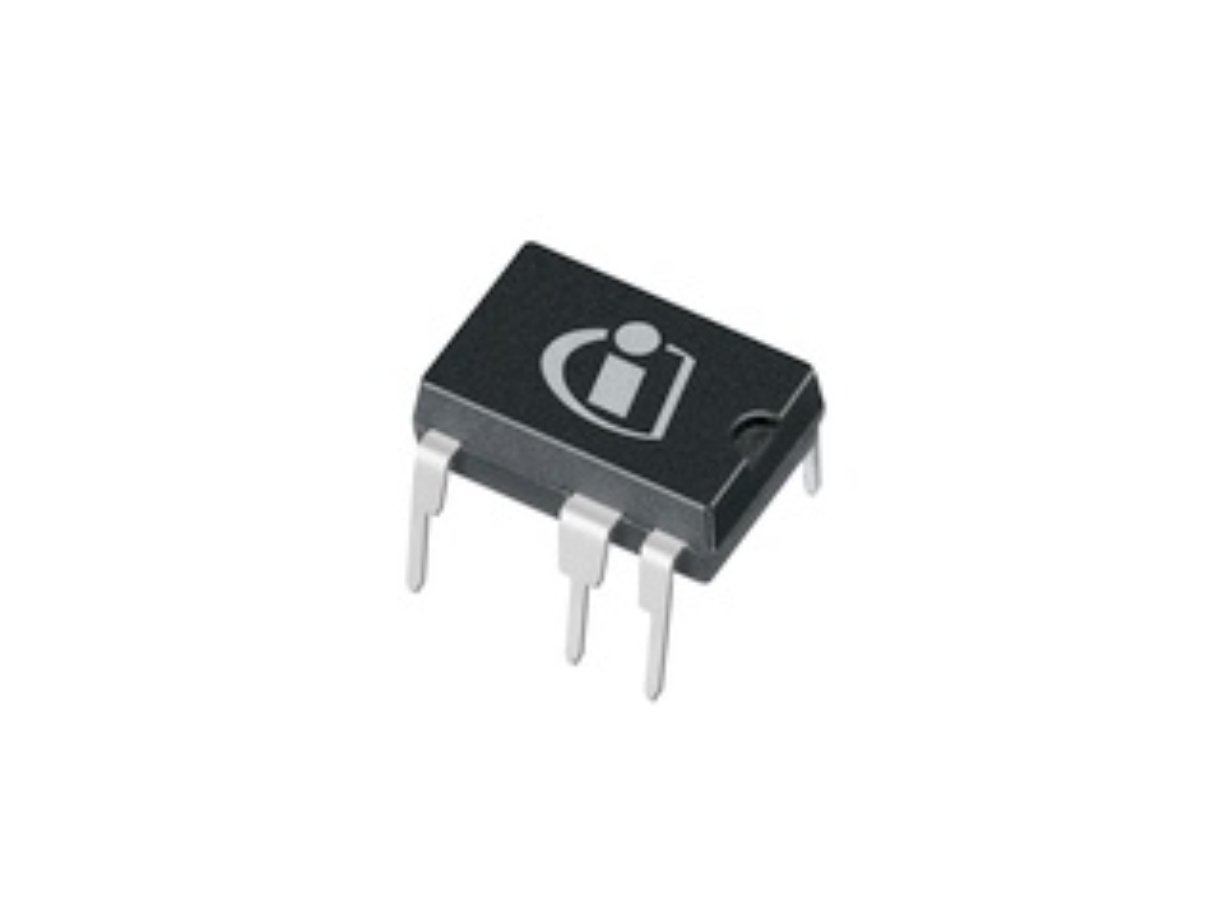

Image is for your reference only,please check specifications for details

ICE3AR2280JZ - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC136238571
Category:
PWM Controller IC
Package:
DIP-7-4
Datasheet:
Datasheet 3D Model
Description:
AC to DC Switching Converter Off-Line Switcher/SMPS Controller 108kHz Tube 7Pin PDIP
Stock Locations:
Availability:
1,106 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.55

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description:
Integrated power management IC integrated with 800V avalanche rugged CoolMOS™, startup cell and fixed frequency current mode flyback PWM controller in DIP-7 package. Capable for 24W SMPS design. The additional features include input brownout feature, active burst mode operation to achieve extremly low standby power consumption, frequency jittering to obtain low EMI, adjustable blanking window to facilitate load jumps and high voltage startup cells that allows you to quickly power up your controller from the rectified line.
Summary of Features:
Peak current control (current mode)
100kHz fixed switching frequency with frequency jitter (low EMI)
adjustable blanking window
enhanced active burst mode (low standby power <100mW)
enhanced integrated protection functions (auto-restart)
accurate peak power limitation
modulated gate drive
brownout
auto-restart enable pin, etc.
Benefits:
Extremely low standby power
very accruate max power control
low EMI noise
brownout, etc.

Show
