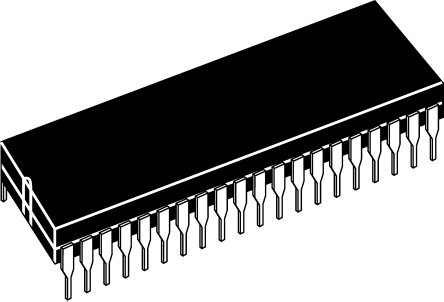

Image is for your reference only,please check specifications for details

ICL7136CPLZ - Intersil
Manufacturer:
Intersil
ManyChip's Part#:
MC66380378
Category:
Analog to Digital, ADC IC
Package:
DIP-40
Datasheet:
Datasheet 3D Model
Description:
INTERSIL ICL7136CPLZ Analog to Digital Converter, Dual, 3.5Bit, 3 SPS, Dual (+/-), -5V, 5V, DIP
Stock Locations:
Availability:
62 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.26

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ICL7136CPLZ is a 3-1/2 digit LCD low power display A/D Converter with over range recovery. Included are seven segment decoders, display drivers, a reference and a clock. The ICL7136 is designed to interface with a liquid crystal display (LCD) and includes a multiplexed backplane drive. The ICL7136 brings together a combination of high accuracy, versatility and true economy. It features auto-zero to less than 10µV, zero drift of less than 1µV/°C, input bias current of 10pA (maximum) and rollover error of less than one count. True differential inputs and reference are useful in all systems, but give the designer an uncommon advantage when measuring load cells, strain gauges and other bridge type transducers. Finally, the true economy of single power supply operation, enables a high performance panel meter to be built with the addition of only 10 passive components and a display.
First reading over range recovery in one conversion period
Guaranteed zero reading for 0V input on all scales
True polarity at zero for precise null detection
1pA Typical input current
True differential input and reference, direct display drive
Low noise (<15µVP-P)
On chip clock and reference
No additional active circuits required
Low power, less than 1mW
ESD sensitive device, take proper precaution while handling the device.

Show

ICL7136CPLZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	40 Pin
Case/Package	DIP-40
Supply Voltage (DC)	-5.00 V (min)
Output Voltage	5.5 V
Supply Current	70 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	40 Position
Number of Bits	3 Bit
Power Dissipation	1 mW
Sample Rate	3 SPS
Number of ADCs	1 ADC
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Number of Input Channels	1 Channel
Supply Voltage	9 V
Supply Voltage (Max)	5 V
Input Voltage	0.2V, 2V
	Show
Size-Length	53.2 mm
Size-Width	14.73 mm
Size-Height	4.95 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
