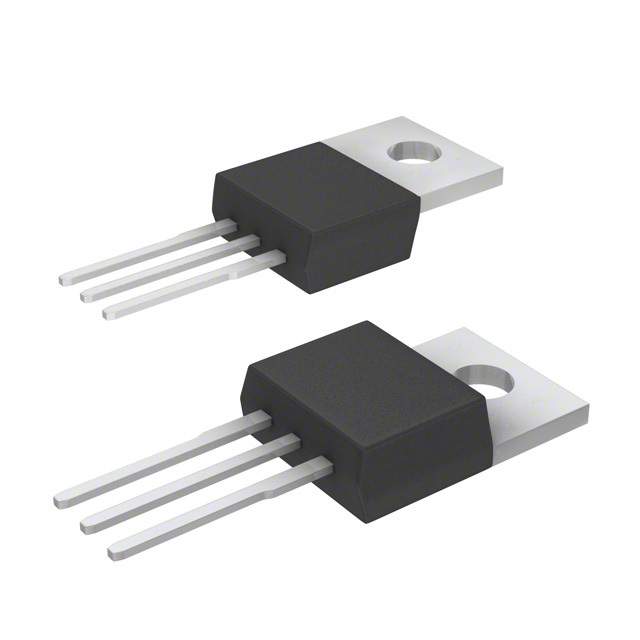

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

TIP32 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Frequency	3 MHz
Power Dissipation	40 W
Breakdown Voltage (Collector to Emitter)	40 V
hFE Min	10 @3A, 4V
Input Power (Max)	2 W
DC Current Gain (hFE)	25
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	2000 mW
	Show
Material	Silicon
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Last Time Buy
Packaging	Bag
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
HTS Code	8541290095
ECCN Code	EAR99
