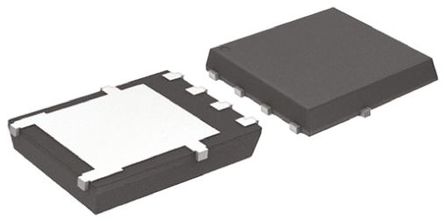

Image is for your reference only,please check specifications for details
Updated at 25/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- N-Channel 30V 16A (Ta), 156A (Tc) 910mW (Ta), 125W (Tc) Surface Mount 5-DFN (5x6) (8-SOFL)
NTMFS4833NT3G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | SO-FL-8 |
| Number of Channels | 1 Channel |
| Drain to Source Resistance (on) (Rds) | 0.002 Ω |
| Polarity | N-Channel |
| Power Dissipation | 125 W |
| Threshold Voltage | 1.5 V |
| Drain to Source Voltage (Vds) | 30 V |
| Breakdown Voltage (Drain to Source) | 30.0 V |
| Continuous Drain Current (Ids) | 191 A |
| Rise Time | 34 ns |
| Input Capacitance (Ciss) | 5600pF @12V(Vds) |
| Fall Time | 17 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 910mW (Ta), 125W (Tc) |
| Show | |
| Size-Length | 5.1 mm |
| Size-Width | 5.8 mm |
| Size-Height | 1.1 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
