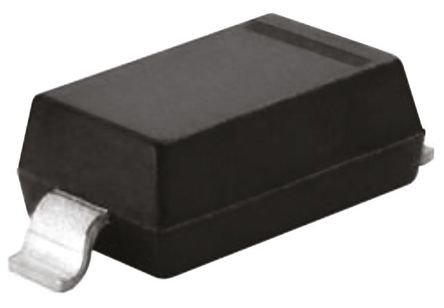

Image is for your reference only,please check specifications for details

MMSD103T1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC1619559
Category:
Small Signal Diode
Package:
SOD-123
Datasheet:
Datasheet 3D Model
Description:
MMSD103T1 Series 250V 200mA SMT High Voltage Switching Diode - SOD-123
Stock Locations:
Availability:
3,220 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.08

Updated at 29/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MMSD103T1G is a small signal Switching Diode designed for high voltage and high speed switching applications. This device is housed in a SOD-123 surface mount package which is ideal for automated insertion.
AEC-Q101 qualified and PPAP capable
Pb-free, halogen free/BFR free
-55 to 150°C Junction and storage temperature range

Show

MMSD103T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-123
Voltage Rating (DC)	250 V
Current Rating	200 mA
Halogen Free Status	Halogen Free
Output Current	≤200 mA
Number of Positions	2 Position
Forward Voltage	1.25V @200mA
Polarity	Standard
Power Dissipation	400 mW
Thermal Resistance	174℃/W (RθJL)
Reverse recovery time	50 ns
Forward Current	200 mA
Max Forward Surge Current (Ifsm)	625 mA
Maximum Forward Voltage (Max)	1.25 V
Forward Current (Max)	200 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	400 mW
	Show
Size-Length	2.84 mm
Size-Width	1.8 mm
Size-Height	1.25 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
