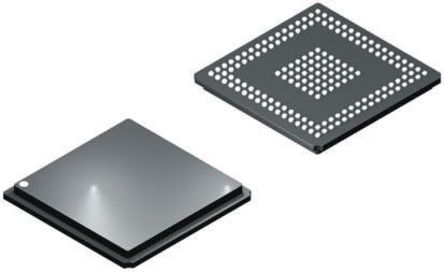

Image is for your reference only,please check specifications for details

EP4CGX15BF14C8N - Altera
Manufacturer:
Altera
ManyChip's Part#:
MC25240600
Category:
FPGA Chip
Package:
FBGA-169
Datasheet:
Datasheet 3D Model
Description:
ALTERA EP4CGX15BF14C8N FPGA, Cyclone IV, PLL, 72 I/O"s, 402MHz, 1.15V to 1.25V, BGA-169
Stock Locations:
Availability:
2,483 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 303.31

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The EP4CGX15BF14C8N is a Cyclone® IV E FPGA consists of 14400 LEs and 540kb of embedded memory. It comes with 20 global clock networks, 9 user I/O banks and 72 maximum user I/O. The logic and routing core fabric is surrounded by I/O elements (IOEs) and phase-locked loops (PLLs). The E device has four general-purpose PLLs located at each corner of the die. The Cyclone® IV E FPGA has I/Os on all four sides of the die. The top and bottom of each transceiver quad feature a multi-purpose PLL (MPLL) that can be used by the transceiver or, when available, by the FPGA fabric. It includes highly efficient interconnect and low-skew clock networks, providing connectivity between logic structures for clock and data signals. The Cyclone® IV E FPGAs for a wide spectrum of general logic applications.
Offered in commercial and industrial temperature grades
Protocol bridging applications for under 1.5W total power
2 Multipurpose PLLs

Show

EP4CGX15BF14C8N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	169 Pin
Case/Package	FBGA-169
Number of Positions	169 Position
RAM Memory Size	552960 b
Number of Inputs and Outputs	72 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	1.16V ~ 1.24V
	Show
Size-Length	14 mm
Size-Width	14 mm
Size-Height	1.25 mm
Operating Temperature	0℃ ~ 85℃ (TJ)
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
HK STC License	NLR
