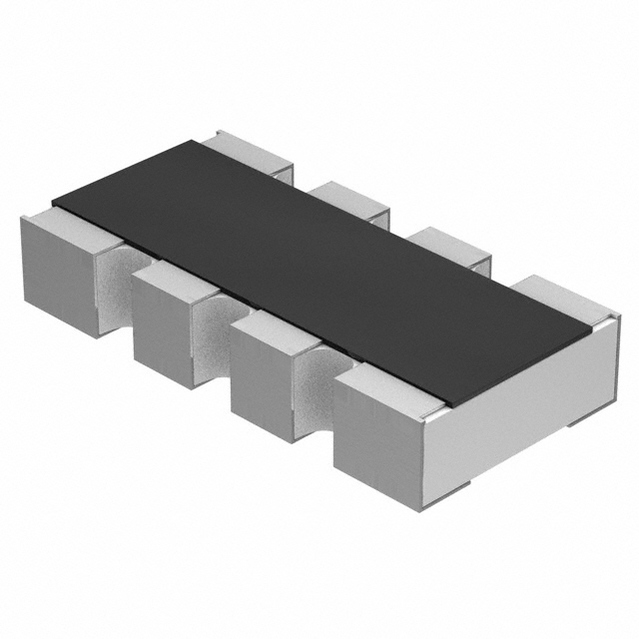

Image is for your reference only,please check specifications for details
- CRA04S08310K0JTD - VISHAY
-
Manufacturer:VISHAY
-
ManyChip's Part#:MC72185093
-
Category:Resistor Array
-
Package:0804
-
Datasheet:Datasheet 3D Model
-
Description:Res Thick Film Array 10KΩ 5% ±200ppm/℃ ISOL Molded 8Pin 0804(4 X 0402) Convex SMD Automotive T/R
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Downsize multiple resistors onto a single chip with the CRA04S08310K0JTD resistor array, developed by Vishay. This dependable part has a power rating per resistor of 0.063 (1/16) W. This product"s 4 resistors have a value of 10K Ohm. Its temperature coefficient is ±200 ppm/°C. It has 8 terminals. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has a tolerance of 5%. The CRA04S08310K0JTD part has a convex termination style. This device is made with thick film technology. This product"s terminal pitch is 0.5 mm. This part has an operating temperature of -55 to 155 °C. This product is 2 mm long, 0.45 mm tall and 1 mm deep.
CRA04S08310K0JTD Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | 0804 |
| Power Rating | 0.063 W |
| Number of Positions | 8 Position |
| Power Dissipation | 0.063 W |
| Resistance | 10 kΩ |
| Resistance Tolerance | ±5 % |
| Operating Temperature (Max) | 155 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Voltage Rating | 50 V |
| Show | |
| Size-Height | 0.45 mm |
| Temperature Coefficient | ±200 ppm/K |
| Packaging | Tape & Reel (TR) |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
