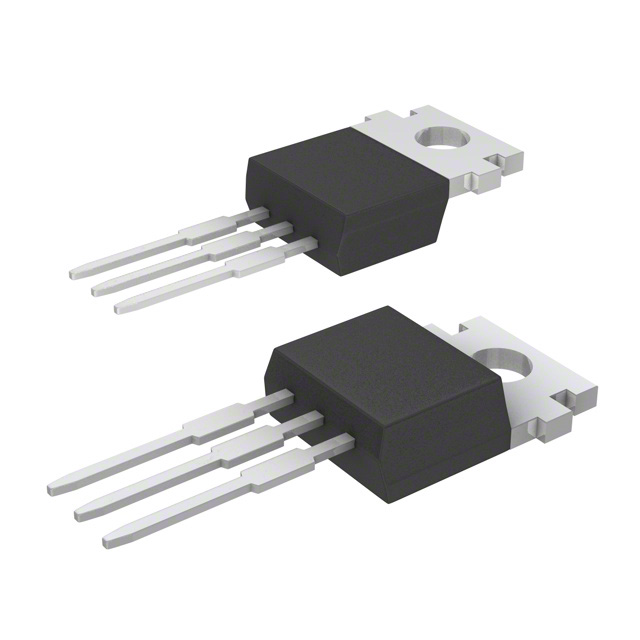

Image is for your reference only,please check specifications for details

LT1085CT - Linear Technology
Manufacturer:
Linear Technology
ManyChip's Part#:
MC90489600
Category:
Voltage Regulator
Package:
TO-220-3
Datasheet:
Datasheet 3D Model
Description:
LDO Regulator Pos 1.25V to 28.5V 3A 3Pin(3+Tab) TO-220 LDO Regulator Pos 1.25V to 28.5V 3A 3Pin(3+Tab) TO-220
Stock Locations:
Availability:
799 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.77

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The LT® 1083 series of positive adjustable regulators are designed to provide 7.5A, 5A and 3A with higher efficiency than currently available devices. All internal circuitry is designed to operate down to 1V input-to-output differential and the dropout voltage is fully specified as a function
of load current. Dropout is guaranteed at a maximum of 1.5V at maximum output current, decreasing at lower load currents. On-chip trimming adjusts the reference voltage to 1%. Current limit is also trimmed, minimizing the stress on both the regulator and power source circuitry under overload conditions.
FEATURES
■ Three-Terminal Adjustable
■ Output Current of 3A, 5A or 7.5A
■ Operates Down to 1V Dropout
■ Guaranteed Dropout Voltage at Multiple Current Levels
■ Line Regulation: 0.015%
■ Load Regulation: 0.1%
■ 100% Thermal Limit Functional Test
■ Fixed Versions Available
■ Available in 3-Lead Plastic TO-220, TO-3P and DD Packages

Show

LT1085CT Specifications
