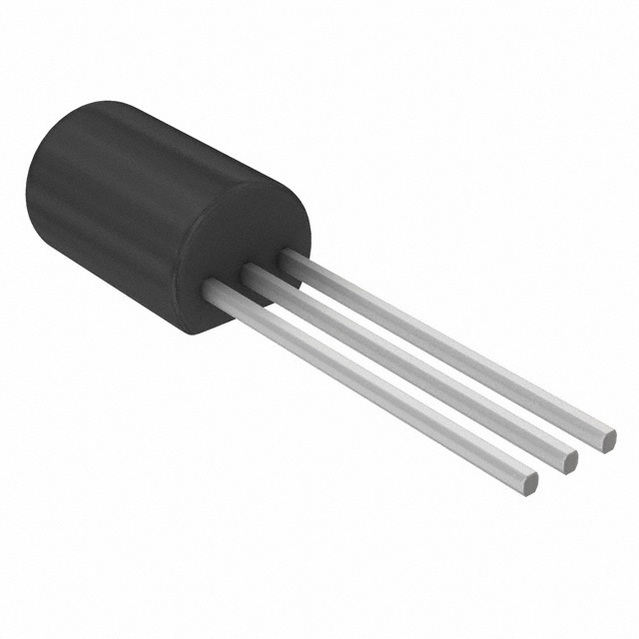

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

2SA1020G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-226-3
Voltage Rating (DC)	-50.0 V
Current Rating	-2.00 A
Polarity	PNP
Power Dissipation	0.9 W
Gain Bandwidth Product	100 MHz
Breakdown Voltage (Collector to Emitter)	50 V
Continuous Collector Current	2A
hFE Min	70 @500mA, 2V
Input Power (Max)	900 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	55 ℃
	Show
Size-Length	5.21 mm
Size-Width	4.19 mm
Size-Height	7.87 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
