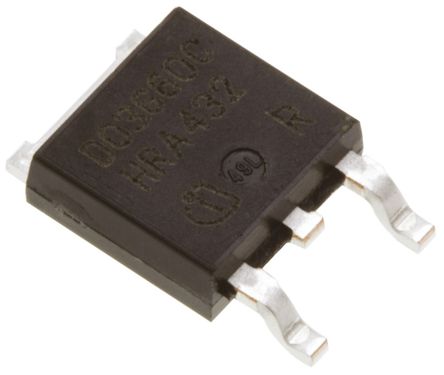

Image is for your reference only,please check specifications for details

IDD03SG60C - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC15797838
Category:
Schottky Diode
Package:
TO-252-3
Datasheet:
Datasheet 3D Model
Description:
INFINEON IDD03SG60C Silicon Carbide Schottky Diode, SIC, thinQ 3G 600V Series, Single, 600V, 3A, 3.2NC, TO-252
Stock Locations:
Availability:
292 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.03

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The IDD03SG60C is a SiC Schottky Diode features the industry lowest device capacitance for any given current rating, which further enhances overall system efficiency, especially at higher switching frequencies and under low load conditions. The generation 3 thinQ!™ Schottky diode is based on the same technology platform as generation 2 with the introduction, of the so called diffusion soldering.
Benchmark switching behaviour
No reverse recovery charge
Temperature independent switching behaviour
High operating temperature
System efficiency improvement compared to Si diodes
Reduced cooling requirements
Enabling higher frequency/increased power density
Higher system reliability due to lower operating temperature
Reduced EMI

Show

IDD03SG60C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Power Rating	38 W
Load Current	3 A
Forward Voltage	2.3V @3A
Power Dissipation	38 W
Reverse recovery time	0 ns
Forward Current	3 A
Max Forward Surge Current (Ifsm)	11.5 A
Maximum Forward Voltage (Max)	2.3 V
Forward Current (Max)	3 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature (Max)	175 ℃
Power Dissipation (Max)	38000 mW
	Show
Size-Length	6.73 mm
Size-Width	6.22 mm
Size-Height	2.41 mm
Operating Temperature	-55℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
