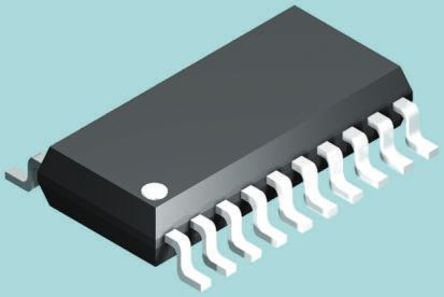

Image is for your reference only,please check specifications for details

IDTQS3245QG - Integrated Device Technology
Manufacturer:
Integrated Device Technology
ManyChip's Part#:
MC101241267
Category:
Logic Control, Logic Gate IC
Package:
QSOP-20
Datasheet:
Datasheet 3D Model
Description:
INTEGRATED DEVICE TECHNOLOGY IDTQS3245QG Analogue Switch, 8Channels, 15Ω, 4.75V to 5.25V, QSOP, 20Pins
Stock Locations:
Availability:
1,455 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.44

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The IDTQS3245QG is a 8-bit QUICKSWITCH® high-speed CMOS Bus Switch in a pinout compatible with 74FCT245, 74F245, 74ALS/AS/LS245 8-bit transceivers. The low ON resistance of the QS3245 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. The output enable (OE) signal turns the switches on similar to the OE signal of the 74"245. The QuickSwitch devices provide an order of magnitude faster speed than conventional logic devices.
Enhanced N channel FET with no inherent diode to Vcc
5R Bidirectional switches connect inputs to outputs
Zero propagation delay, zero ground bounce
Undershoot clamp diodes on all switch and control inputs
Hot-swapping and hot-docking
Power conservation
Capacitance reduction and isolation
Clock gating
Bus switching and isolation

Show

IDTQS3245QG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	QSOP-20
Output Current	120 mA
Number of Channels	8 Channel
Number of Positions	20 Position
Number of Bits	8 Bit
Power Dissipation	500 mW
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.75V ~ 5.25V
	Show
Size-Length	8.69 mm
Size-Width	3.94 mm
Size-Height	1.47 mm
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
