Description

Summary of Features:
Designed specifically to replace planar MOSFETs in applications switching at frequencies below 70kHz
Low switching losses for high efficiency
Excellent V ce(sat) behavior thanks to the famous Infineon TRENCHSTOP™ technology
Fast switching behavior with low EMI emissions
Optimized diode for target applications, meaning further improvement in switching losses
Low gate resistor selection possible (down to 5Ω) whilst maintaining excellent switching behaviour
Short circuit capability
Offering T j(max) of 175°C
Packaged with and without freewheeling diode for increased design freedom
Benefits:
Excellent cost/performance
Low switching and conduction losses
Very good EMI behavior
A small gate resistor for reduced delay time and voltage overshoot
Smaller die sizes -> smaller packages
Best-in-class IGBT efficiency and EMI behavior

Show

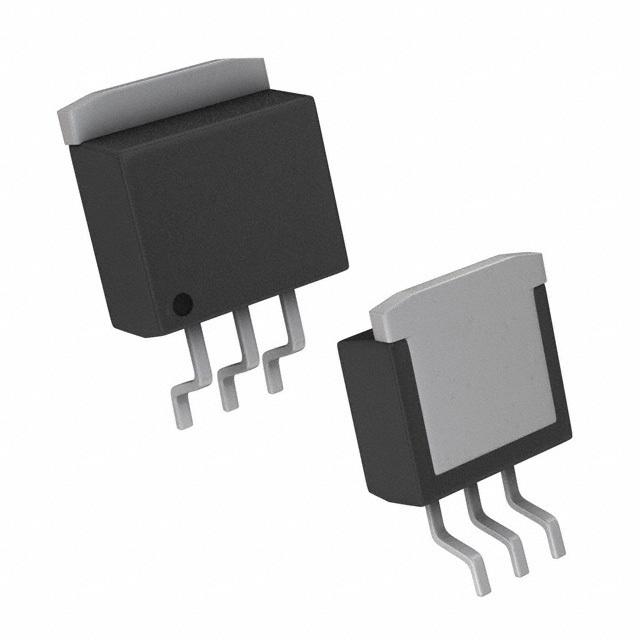

IGB20N60H3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Power Rating	170 W
Breakdown Voltage (Collector to Emitter)	600 V
Input Power (Max)	170 W
	Show
Operating Temperature	-40℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
