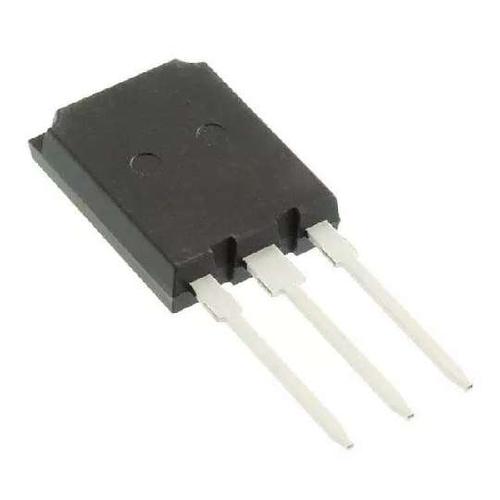

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Summary of Features:
Designed specifically to replace planar MOSFETs in applications switching at frequencies below 70kHz
Low switching losses for high efficiency
Excellent V ce(sat) behavior thanks to the famous Infineon TRENCHSTOP™ technology
Fast switching behavior with low EMI emissions
Optimized diode for target applications, meaning further improvement in switching losses
Low gate resistor selection possible (down to 5Ω) whilst maintaining excellent switching behaviour
Short circuit capability
Offering T j(max) of 175°C
Packaged with and without freewheeling diode for increased design freedom
Benefits:
Excellent cost/performance
Low switching and conduction losses
Very good EMI behavior
A small gate resistor for reduced delay time and voltage overshoot
Smaller die sizes -> smaller packages
Best-in-class IGBT efficiency and EMI behavior

Show

IGW40N60H3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Power Rating	306 W
Power Dissipation	306 W
Breakdown Voltage (Collector to Emitter)	600 V
Input Power (Max)	306 W
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-40 ℃
	Show
Operating Temperature	-40℃ ~ 175℃
Product Lifecycle Status	Not Recommended for New Design
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
HK STC License	NLR
