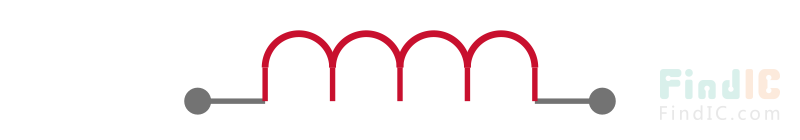

Image is for your reference only,please check specifications for details
- IHLP2020BZER1R0M11 - VISHAY
-
Manufacturer:VISHAY
-
ManyChip's Part#:MC59410326
-
Category:Inductor
-
Package:2020
-
Datasheet:Datasheet 3D Model
-
Description:Inductor Power Shielded Wirewound 1uH 20% 100kHz Powdered Iron 7.5A 18.1mOhm DCR 2020 T/R
-
Stock Locations:
-
Availability:1,485 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.98
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- IHLP Series 2020 1 uH 20% 7.5 A Shielded Low Profile High Current SMT Inductor
IHLP2020BZER1R0M11 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Case/Package | 2020 |
| Inductance | 1 µH |
| Inductance Tolerance | ±20 % |
| Test Frequency | 100 kHz |
| DC Resistance (DCR) | 0.0181 Ω |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Resistance (DC Max) | 0.0181 Ω |
| Show | |
| Size-Length | 5.49 mm |
| Size-Width | 5.18 mm |
| Size-Height | 2 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
