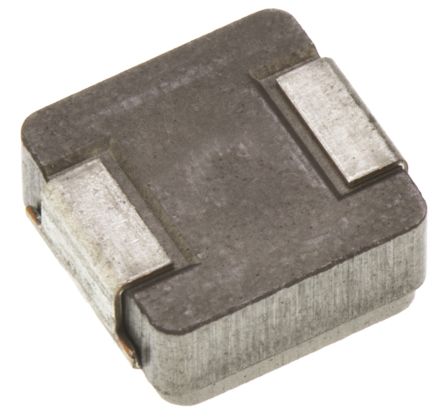

Image is for your reference only,please check specifications for details
Updated at 25/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- IHLP Series 2525 1 uH 20% 11 A Shielded Low Profile High Current SMT Inductor
IHLP2525CZER1R0M01 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | 2525 |
| Current Rating | 11 A |
| Capacitance Tolerance | ±20 % |
| Inductance | 1 µH |
| Self Resonant Frequency | 55 MHz |
| Part Family | IHLP |
| Resistance | 10.0 Ω |
| Shielding | Yes |
| Inductance Tolerance | ±20 % |
| Test Frequency | 0.1 MHz |
| DC Resistance (DCR) | 10 mΩ |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Accuracy | ±20 % |
| Resistance (DC Max) | 10 mΩ |
| Show | |
| Size-Length | 6.86 mm |
| Size-Width | 6.72 mm |
| Size-Height | 3 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
