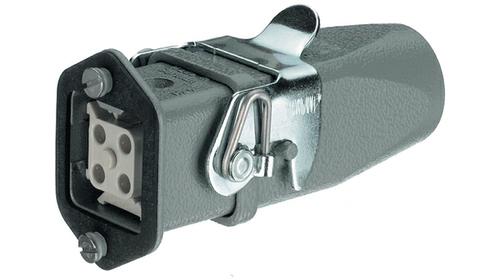

Image is for your reference only,please check specifications for details

10200160000 - Harting Technology Group
Manufacturer:
Harting Technology Group
ManyChip's Part#:
MC12422793
Category:
Connector Kit
Package:
Metal
Datasheet:
Datasheet 3D Model
Description:
HARTING 10200160000 Connector Kit, Wire To Wire, Housing; Hood; Male & Female insert; Cable seal (5-9mm) & (6-12mm)
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 10200160000 is a 16-way Han-Kit® Rectangular Connector Kit made of die-cast aluminum alloy. It features Han® 16A, 16-pins + PE inserts and 18 to 14AWG screw terminals.
16A Hood
M20 metal cable gland
IP67 Protection rating

Show

10200160000 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw, Bulkhead
Number of Pins	16 Pin
Case/Package	Metal
Number of Contacts	17 Contact
Voltage Rating (DC)	16.0 V
Operating Voltage	600 V
Current Rating	16 A
Number of Positions	16 Position
Voltage Rating	16 V
	Show
Housing Material	Aluminum Alloy
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
