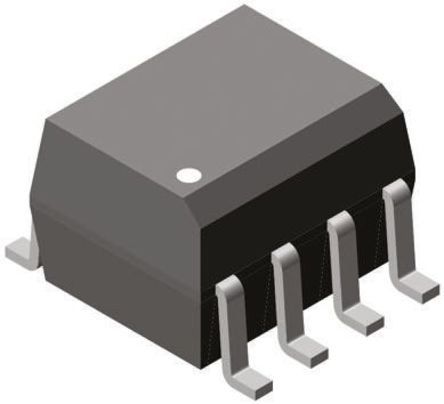

Image is for your reference only,please check specifications for details
- IL207AT - VISHAY
-
Manufacturer:VISHAY
-
ManyChip's Part#:MC13076784
-
Category:Optocoupler, Optoisolator
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:IL207AT Series Single Channel 70V 4000Vrms Phototransistor Optocoupler - SOIC-8
-
Stock Locations:
-
Availability:9,942 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.35
Updated at 24/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The IL207AT is a 1-channel 8-pin Phototransistor Output Optocoupler with base connection. It is optically coupled pairs with a gallium arsenide infrared LED and a silicon NPN phototransistor. Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between input and output. It is ideally suited for high density application with limited space. In addition to eliminating through-hole requirements. A specified minimum and maximum CTR allows a narrow tolerance in the electrical design of the adjacent circuits. The high BVCEO of 70V gives a higher safety margin compared to the industry standard 30V.
- Compatible with dual wave, vapour phase and IR reflow soldering
- 6V Peak reverse voltage
IL207AT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Voltage Rating (DC) | 1.30 V |
| Output Voltage | 70.0 V |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Forward Voltage | 1.3 V |
| Input Current | 60.0 mA |
| Power Dissipation | 0.24 W |
| Rise Time | 0.003 ms |
| Isolation Voltage | 4000 Vrms |
| Forward Current | 60 mA |
| Output Voltage (Max) | 70 V |
| Input Current (Min) | 60 mA |
| Reverse Breakdown Voltage | 6 V |
| Maximum Forward Voltage (Max) | 1.5 V |
| Forward Current (Max) | 60 mA |
| Fall Time | 0.003 ms |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 240 mW |
| Show | |
| Operating Temperature | -55℃ ~ 100℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
