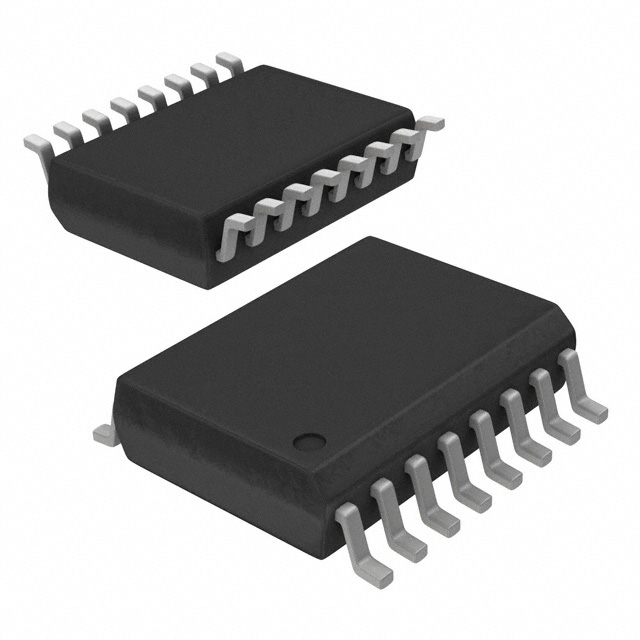

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The IL485E is a galvanically isolated RS485 high-speed Differential Bus Transceiver Interface designed for bidirectional data communication on balanced transmission lines. This has current limiting and thermal shutdown features to protect against output short circuits and bus contention situations that could cause excessive power dissipation.
- 25ns Maximum propagation delay
- 35Mbps Data rate
- ±60mA Driver output capability
- Thermal shutdown protection
- -40 to 85°C Temperature range
- PROFIBUS international component recognition
IL485E Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SOIC-16 |
| Supply Voltage (DC) | 3.00V (min) |
| Rise/Fall Time | 8 ns |
| Output Current | ≤95.0 mA |
| Supply Current | 27.0 mA |
| Number of Channels | 3 Channel |
| Number of Positions | 16 Position |
| Data Rate | 35.0 Mbps |
| Isolation Voltage | 2500 Vrms |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Operating Temperature | -40℃ ~ 100℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2016/06/20 |
| ECCN Code | 5A991 |
