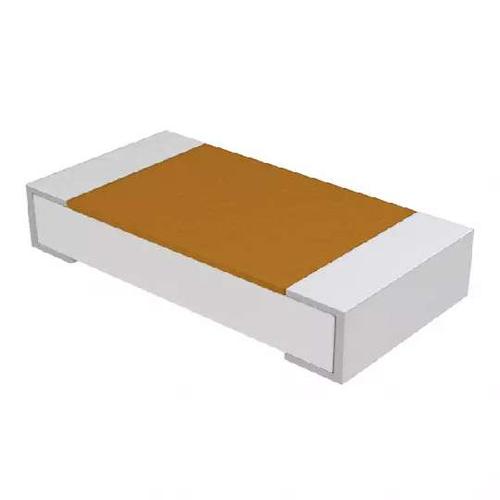

Image is for your reference only,please check specifications for details
- ILB1206ER301V - Vishay Dale
-
Manufacturer:Vishay Dale
-
ManyChip's Part#:MC11349933
-
Category:Filter
-
Package:1206
-
Datasheet:Datasheet 3D Model
-
Description:Ferrite Beads Multi-Layer 300Ω 25% 100MHz 300mA 300mOhm DCR 1206 T/R
-
Stock Locations:
-
Availability:3,886 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.11
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 300 Ohms @ 100MHz 1 Ferrite Bead 1206 (3216 Metric) 300mA 300mOhm
ILB1206ER301V Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package (SI) | 3216 |
| Case/Package | 1206 |
| Frequency | 100 MHz |
| Current Rating | 300 mA |
| Capacitance Tolerance | 25 % |
| Inductance | 300 µH |
| Self Resonant Frequency | 100 MHz |
| Test Frequency | 100 MHz |
| DC Resistance (DCR) | ≤300 mΩ |
| Current Rating (Max) | 300 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Resistance (DC Max) | 300 mΩ |
| Show | |
| Size-Length | 3.2 mm |
| Size-Width | 1.6 mm |
| Size-Height | 1.1 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
