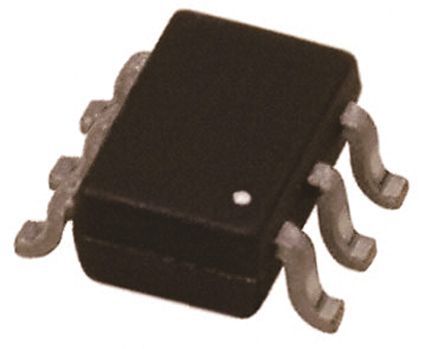

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Pre-Biased Bipolar Transistor (BJT) 1 NPN, 1 PNP - Pre-Biased (Dual) 50V 100mA, 500mA 250MHz 300mW Surface Mount SMT6
IMD16AT108 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | SC-74-6 |
| Voltage Rating (DC) | 50.0 V |
| Current Rating | 500 mA |
| Power Rating | 0.3 W |
| Polarity | NPN, PNP |
| Power Dissipation | 300 mW |
| Breakdown Voltage (Collector to Emitter) | 50 V |
| Continuous Collector Current | 100mA/500mA |
| hFE Min | 100 |
| hFE Max | 600 |
| Input Power (Max) | 300 mW |
| DC Current Gain (hFE) | 250 |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Gain Bandwidth | 250 MHz |
| Power Dissipation (Max) | 300 mW |
| Show | |
| Size-Length | 2.9 mm |
| Size-Width | 1.6 mm |
| Size-Height | 1.1 mm |
| Operating Temperature | -55℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
