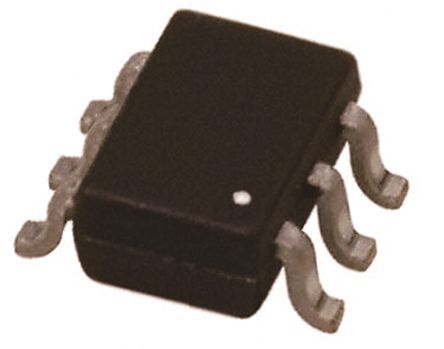

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

IMD3AT108 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SC-74-6
Power Rating	0.3 W
Number of Channels	2 Channel
Polarity	NPN, PNP
Power Dissipation	300 mW
Breakdown Voltage (Collector to Emitter)	50 V
hFE Min	30 @5mA, 5V
hFE Max	30
Input Power (Max)	300 mW
DC Current Gain (hFE)	30
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Gain Bandwidth	250 MHz
Power Dissipation (Max)	300 mW
	Show
Size-Length	2.9 mm
Size-Width	1.6 mm
Size-Height	1.2 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Not Recommended for New Design
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR
