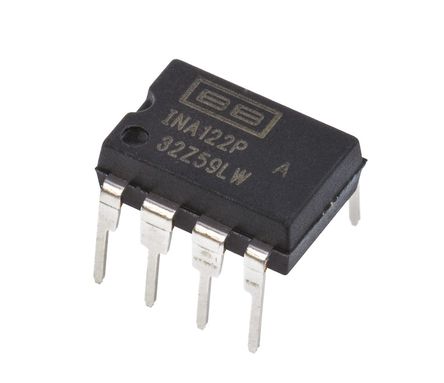

- INA122PA - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC3289058
-
Category:Instrumentation Amplifier IC
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:TEXAS INSTRUMENTS INA122PA Instrument Amplifier, 1, 500V, 0.08V/ s, 120kHz, 2.2V to 36V, -900mV, 1.3V to 18V, DIP
-
Stock Locations:
-
Availability:277 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.52
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The INA122PA is a Precision Instrumentation Amplifier for accurate, low noise differential signal acquisition. Its two-op-amp design provides excellent performance with very low quiescent current and is ideal for portable instrumentation and data acquisition systems. The single supply Micropower INA122 amplifier can be operated with single power supplies from 2.2 to 36V and quiescent current is a mere 60µA. It can also be operated from dual supplies. By utilizing an input level-shift network, input common mode range extends to 0.1V below negative rail (single supply ground). A single external resistor sets gain from 5 to 10000V/V. Laser trimming provides very low offset voltage (250µV maximum), offset voltage drift (3µV/°C maximum) and excellent common-mode rejection.
- 60µA Low quiescent current
- Rail-to-rail output swing
- 250µV Maximum low offset voltage
- 3µV/°C Maximum low offset drift
- 60nV/√Hz Low noise
- 25nA Maximum low input bias current
- Green product and no Sb/Br
- ESD sensitive device, take proper precaution while handling the device.
INA122PA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | PDIP-8 |
| Supply Voltage (DC) | 15.0 V |
| Operating Voltage | 2.2V ~ 36V |
| Supply Current | 60 µA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Common Mode Rejection Ratio | 90 dB |
| Quiescent Current | 60.0 µA |
| Bandwidth | 120 kHz |
| Slew Rate | 80.0 mV/μs |
| Input Offset Voltage | 500 µV |
| Input Bias Current | 10 nA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 120 kHz |
| Gain Bandwidth | 5 kHz |
| Minimum CMRR Range | 76 dB |
| Supply Voltage (Max) | 30V ~ 50V |
| Show | |
| Size-Length | 9.81 mm |
| Size-Width | 6.35 mm |
| Size-Height | 4.57 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
