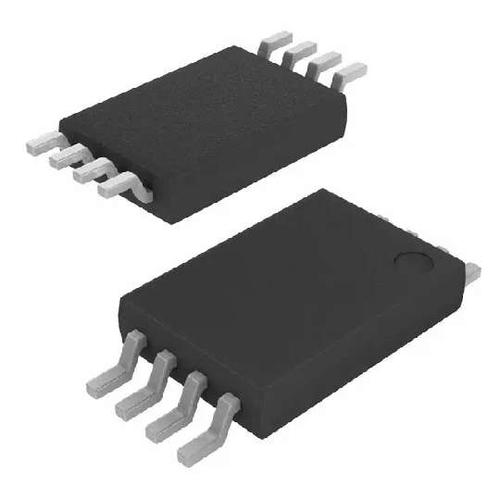

- INA139QPWRQ1 - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC7035193
-
Category:Operational Amplifier, OP Amp IC
-
Package:TSSOP-8
-
Datasheet:Datasheet 3D Model
-
Description:Automotive Grade, 36V, High-Side, High-Speed, Current Output Current Shunt Monitor 8-TSSOP -40℃ to 125℃
-
Stock Locations:
-
Availability:303 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.24
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The INA139-Q1 and INA169-Q1 (INA1x9-Q1) are high-side, unidirectional, current shunt monitors. Wide input common-mode voltage range, high-speed, low quiescent current, and TSSOP-8 packaging enable use in a variety of applications.
- The device converts a differential input voltage to a current output. This current is converted back to a voltage with an external load resistor that sets any gain from 1 to over 100. Although designed for current shunt measurement, the circuit invites creative applications in measurement and level shifting.
- Both the INA139-Q1 and INA169-Q1 are available in a TSSOP-8 package, and are specified for the –40°C to +125°C temperature range.
INA139QPWRQ1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | TSSOP-8 |
| Supply Voltage (DC) | 40.0V (max) |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Common Mode Rejection Ratio | 100 dB |
| Input Offset Voltage | 2 mV |
| Input Bias Current | 10000 nA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 100 dB |
| Accuracy | ±0.5 % |
| Minimum CMRR Range | 100 dB |
| Supply Voltage (Max) | 30V ~ 50V |
| Supply Voltage (Min) | 2.7 V |
| Input Voltage | 2.7V ~ 40V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HK STC License | NLR |
