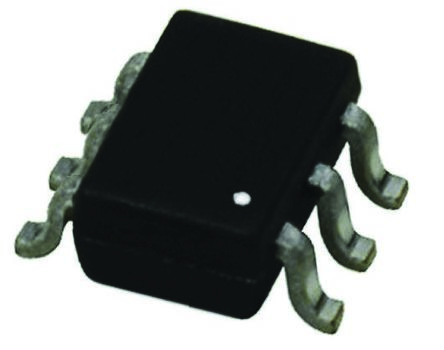

Image is for your reference only,please check specifications for details
- BAV99SH6327XTSA1 - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC9261159
-
Category:Diode Array, TVS Diode Array
-
Package:SOT-363-6
-
Datasheet:Datasheet 3D Model
-
Description:Diode: switching; SMD; 85V; 0.2A; 0.25W(1/4W); Package: reel, tape; SOT363
-
Stock Locations:
-
Availability:10,804 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.36
Updated at 23/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- For high-speed switching applications
- Series pair configuration
- BAV99S / U: For orientation in reel see
- package information below
- Pb-free (RoHS compliant) package1)
- Qualified according AEC Q101
BAV99SH6327XTSA1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | SOT-363-6 |
| Power Rating | 250 mW |
| Load Current | 0.2 A |
| Forward Voltage | 1.25V @150mA |
| Power Dissipation | 250 mW |
| Reverse recovery time | 4 ns |
| Forward Current | 200 mA |
| Maximum Forward Voltage (Max) | 1.25 V |
| Forward Current (Max) | 200 mA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Junction Temperature | 150℃ (Max) |
| Power Dissipation (Max) | 250 mW |
| Show | |
| Size-Length | 2 mm |
| Size-Width | 1.25 mm |
| Size-Height | 0.9 mm |
| Material | Silicon |
| Operating Temperature | -65℃ ~ 150℃ |
| Product Lifecycle Status | Not Recommended for New Designs |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
