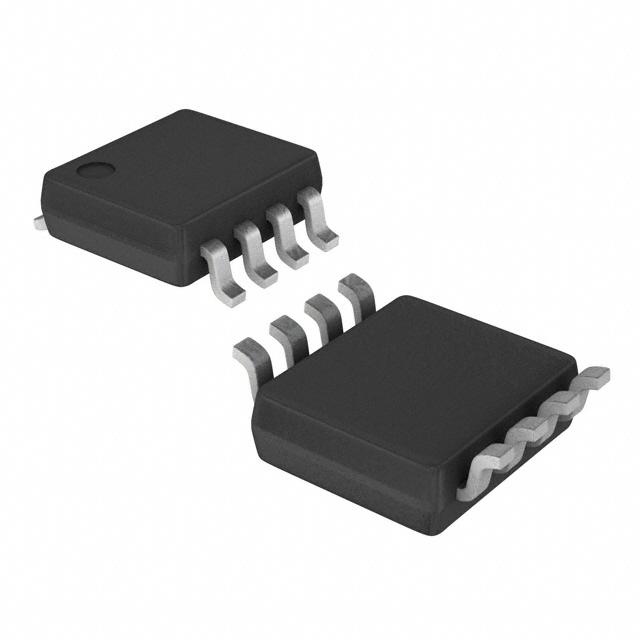

Image is for your reference only,please check specifications for details
- INA282AIDGKT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC14014400
-
Package:VSSOP-8
-
Datasheet:Datasheet 3D Model
-
Description:-14V to +80V, Bi-Directional, High Accuracy, Low- or High-Side, Voltage Output Current Shunt Monitor 8-VSSOP -40℃ to 125℃
-
Stock Locations:
-
Availability:243 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.51
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The Texas Instruments current shunt monitor INA282AIDGKT differential amplifier can help you amplify many low power audio samples using not just one, but two channels. This part has a minimum operating temperature of -40 °C and a maximum of 125 °C. It has a single channel per chip. This device uses a single power supply.
INA282AIDGKT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | VSSOP-8 |
| Number of Channels | 1 Channel |
| Common Mode Rejection Ratio | 120 dB |
| Bandwidth | 10 kHz |
| Input Offset Voltage | 0.07 mV |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±0.4 % |
| Minimum CMRR Range | 120dB ~ 130dB |
| Supply Voltage (Max) | 18V ~ 20V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
