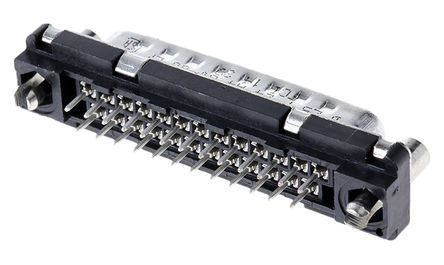

Image is for your reference only,please check specifications for details

D25P24A4GV00LF - FCI Electronics
Manufacturer:
FCI Electronics
ManyChip's Part#:
MC30968128
Category:
D-Sub Connector, D-Sub Standard Connector, Connector D-Subminiature
Datasheet:
Datasheet 3D Model
Description:
Conn D-Subminiature HDR 25POS 2.76mm Solder ST Thru-Hole 25 Terminal 1Port
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

FCI"s D-Subminiature connectors are part of an industry standard for applications requiring robust and reliable connectors. These proven D-Subminiature connectors are one of the most popular Input — Output interconnects, addressing a wide variety of applications in Telecommunications, Data, Consumer, Industrial, military, Instrumentation and Medical. Since many years FCI has been offering a wide range of D-Subminiature connectors to meet various design requirements including those in harsh environment.

Show

D25P24A4GV00LF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Pin Pitch	2.76 mm
Number of Contacts	25 Contact
Gender	Male
Contact Plating	Gold
Current Rating	5 A
Number of Rows	2 Row
Flammability Rating	UL 94 V-0
Number of Positions	25 Position
Contact Resistance	10.0 mΩ
Number of Mating Cycles	200 Cycle
Voltage Rating	300 V
Operating Voltage (Max)	300 VAC
	Show
Size-Length	53.03 mm
Size-Width	11.7 mm
Size-Height	11.7 mm
Housing Color	Black
Color	Black
Contact Material	Phosphor Bronze
Material	Steel
Operating Temperature	-55℃ ~ 125℃
Housing Material	Plastic
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
