Description
- Single Output Full Function Synchronous Buck Power Block
- Integrated Power Semiconductors, PWM Control & Passives
- Features
- • 5.5V to 13.2V Input Voltage
- • 0.8V to 8V Output Voltage
- • 15A Maximum Load Capability
- • 200-400kHz Nominal Switching Frequency
- • Over Current Hiccup
- • External Synchronization Capable
- • Overvoltage Protection
- • Over Temperature Protection
- • Internal Features Minimize Layout Sensitivity
- • Very Small Outline 9mm x 9mm x 2.3mm

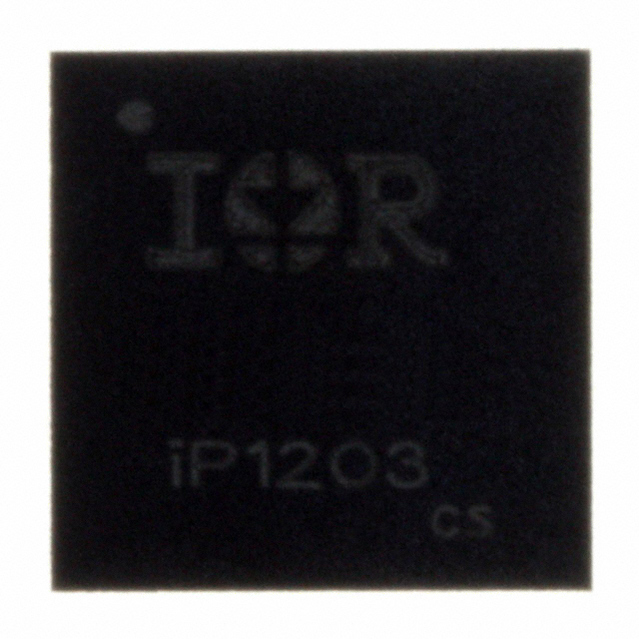

IP1203 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | LGA-24 |
| Supply Voltage (DC) | 13.2V (max) |
| Number of Outputs | 1 Output |
| Output Voltage | 0.8V ~ 8V |
| Output Current | 15 A |
| Part Family | IP1203 |
| Output Power | 3.75 W |
| Switching Frequency | 170kHz ~ 460kHz |
| Input Voltage | 5.5V ~ 13.2V |
| Show | |
| Operating Temperature | -10℃ ~ 125℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tray |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
