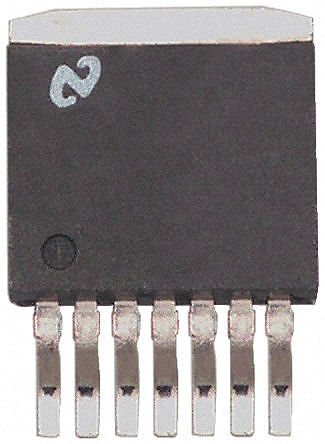

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

IPB016N06L3 G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	7 Pin
Case/Package	TO-263-7
Number of Channels	1 Channel
Number of Positions	7 Position
Drain to Source Resistance (on) (Rds)	0.0012 Ω
Power Dissipation	250 W
Threshold Voltage	1.7 V
Drain to Source Voltage (Vds)	60 V
Rise Time	79 ns
Input Capacitance (Ciss)	28000pF @30V(Vds)
Input Power (Max)	250 W
Fall Time	38 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	250W (Tc)
	Show
Size-Length	10 mm
Size-Width	9.25 mm
Size-Height	4.4 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
