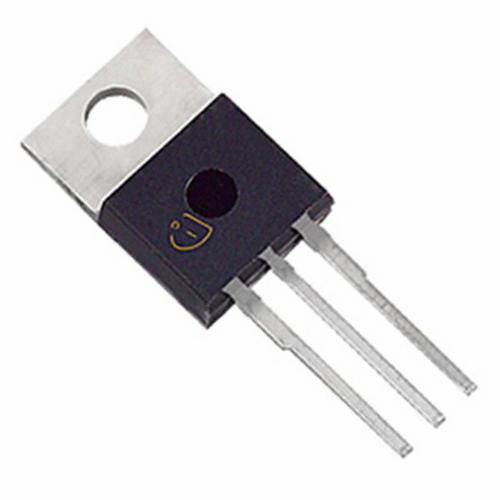

Image is for your reference only,please check specifications for details
- IPP075N15N3 G - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC9228030
-
Category:MOSFET, MOSFET Transistor
-
Package:TO-220-3
-
Datasheet:Datasheet 3D Model
-
Description:The IPP075N15N3 G is a 150V N-channel Power MOSFET that achieves a reduction in RDS (on) of 40% and of 45% in Figure of Merit (FOM). The OptiMOS™ MOSFET offers high system efficiency and industry's lowest RDS (on) within the voltage classes. It is ideally suited for high frequency switching applications and optimized technology for DC-DC converters.
-
Stock Locations:
-
Availability:261 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.08
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Excellent switching performance
- World’s lowest R DS(on)
- Very low Q g and Q gd
- Excellent gate charge x R DS(on) product (FOM)
- RoHS compliant-halogen free
- MSL1 rated 2
- Benefits:
- Environmentally friendly
- Increased efficiency
- Highest power density
- Less paralleling required
- Smallest board-space consumption
- Easy-to-design products
IPP075N15N3 G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Number of Channels | 1 Channel |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 6.2 mΩ |
| Polarity | N-Channel |
| Power Dissipation | 300 W |
| Threshold Voltage | 3 V |
| Drain to Source Voltage (Vds) | 150 V |
| Rise Time | 35 ns |
| Input Capacitance (Ciss) | 5470pF @75V(Vds) |
| Fall Time | 14 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 300000 mW |
| Show | |
| Size-Length | 10 mm |
| Size-Width | 4.57 mm |
| Size-Height | 15.65 mm |
| Operating Temperature | -55℃ ~ 175℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
