Description
- The TPSM84824 power module is an easy-to-use integrated power supply that combines an 8A DC/DC converter with power MOSFETs, a shielded inductor and passives into a small form-factor QFM package. This power solution allows as few as six external components while maintaining the ability to adjust key parameters to meet specific design requirements. Ultra-fast transient response can be achieved by use of the TurboTrans™ feature.
- Integrated inductor power solution
- Input voltage range: 4.5V to 17V
- Wide output voltage range: 0.6V to 10V
- Efficiencies up to 96%
- Adjustable fixed switching frequency (200kHz to 1.6MHz)
- Allows synchronization to an external clock
- Ultra-Fast load step response (TurboTrans™)
- Power-good output
TPSM84824MOLR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |

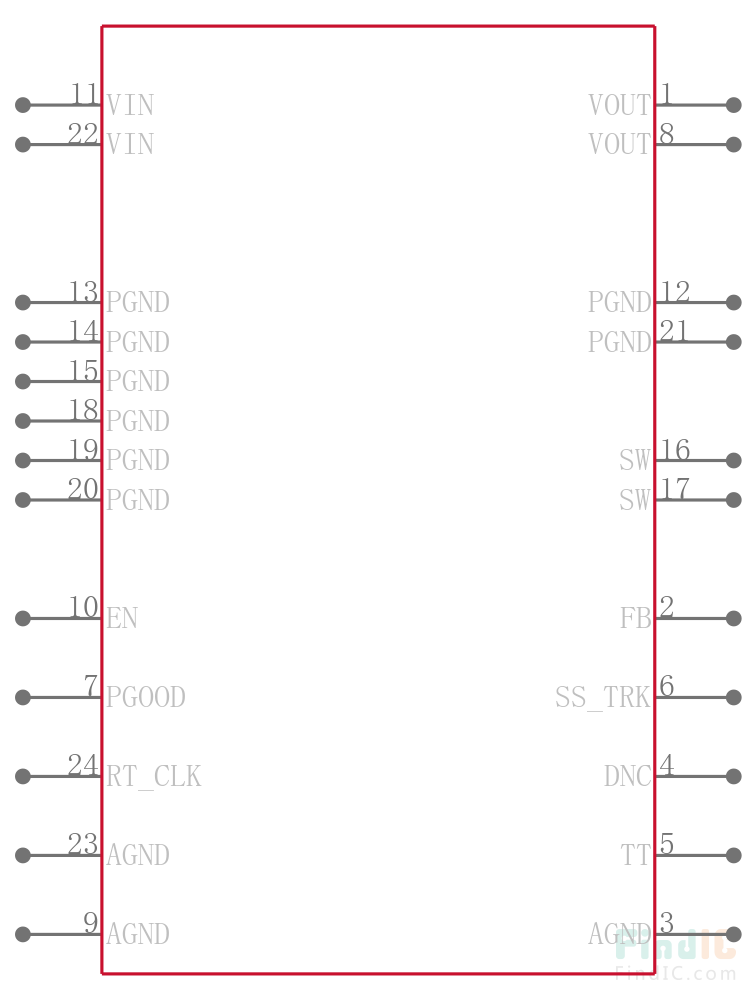

| Number of Pins | 24 Pin |
| Case/Package | SMD-24 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.6V ~ 10V |
| Output Current | 8 A |
| Number of Positions | 24 Position |
| Switching Frequency | 500 kHz |
| Input Voltage (Max) | 17 V |
| Input Voltage (Min) | 4.5 V |
| Output Voltage (Max) | 10 V |
| Output Voltage (Min) | 600 mV |
| Output Current (Max) | 8 A |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Operating Temperature | -40℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | Compliant with Exemption |
| Lead-Free Status |
