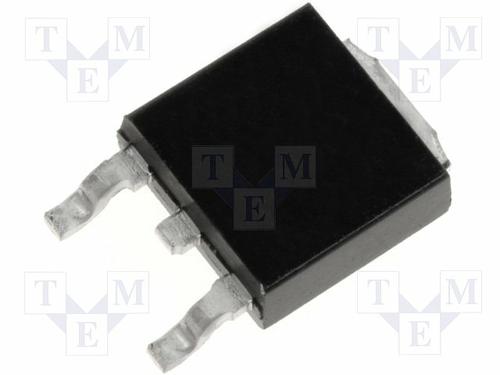

Image is for your reference only,please check specifications for details

IPS6011RPBF - International Rectifier
Manufacturer:
International Rectifier
ManyChip's Part#:
MC149396848
Category:
Power Distribution
Package:
TO-252-5
Datasheet:
Datasheet 3D Model
Description:
IPS6011R Series 1Channel 39V 5.6A High Side Intelligent Power Switch TO-252-5
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 29/07/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

IPS6011RPBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TO-252-5
Operating Voltage	28.0V (max)
Current Rating	5.6 A
Power Rating	2.5 W
Number of Outputs	1 Output
Input Voltage (DC)	5.50 V
Output Voltage	28 V
Output Current	5.6 A
Supply Current	2.2 mA
Load Current	2.4 A
Drain to Source Resistance (on) (Rds)	0.014 Ω
Input Current	40 µA
Polarity	N-Channel
Power Dissipation	2.5 W
Part Family	IPS6011RPBF
Threshold Voltage	2.5 V
Clamping Voltage	39 V
Fall Time	30 µs
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2500 mW
Supply Voltage	28 VDC
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4 V
Input Voltage	5.5 V
	Show
Size-Length	6.73 mm
Size-Width	7.49 mm
Size-Height	2.39 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
