Description

Description:

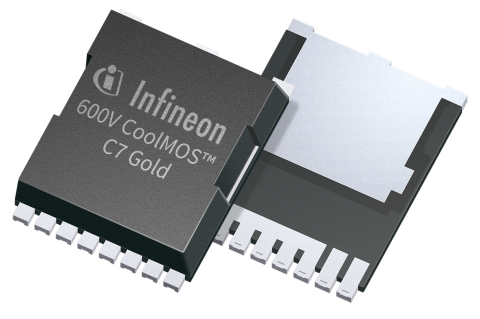

The CoolMOS™ C7 Gold series (G7) for the first time brings together the benefits of the improved 600V CoolMOS™ C7 Gold technology, 4pin Kelvin source capability and the improved thermal properties of the TO-Leadless (TOLL) package to enable a possible SMD solution for high current hard switching topologies such as power factor correction (PFC) up to 3kW and for resonant circuits such as high end LLC.
Summary of Features:
**CoolMOS™ C7 Gold**
Gives best-in-class FOM R DS(on)xE oss and R DS(on)xQ G
Enables best-in-class R DS(on) in smallest footprint
**TO-Leadless package**
Inbuilt 4 th pin Kelvin source configuration and low parasitic source inductance (~1nH)
Is MSL1 compliant, total Pb-free, has easy visual inspection grooved leads
Enables improved thermal performance R th
Benefits:
Higher efficiency due to the improved C7 Gold technology and faster switching due to the package low parasitic source inductance and the 4pin Kelvin source concept
Improved power density due to low R DS(on) in small footprint, by either replacing TO-packages (height restrictions) or paralleling SMD packages due to thermal or R DS(on) requirements
Production cost reduction by moving to SMD through quicker assembly times

Show

IPT60R028G7XTMA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	9 Pin
Case/Package	PG-HSOF-8
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.024 Ω
Power Dissipation	391 W
Threshold Voltage	3.5 V
Drain to Source Voltage (Vds)	600 V
Rise Time	9 ns
Input Capacitance (Ciss)	4820pF @400V(Vds)
Fall Time	2.8 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	391000 mW
	Show
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
