Description

Summary of Features:
650V voltage
Revolutionary best-in-class R DS(on)/package
Reduced energy stored in output capacitance (Eoss)
Lower gate charge Qg
Space saving through use of smaller packages or reduction of parts
12 years manufacturing experience in superjunction technology
Benefits:
Improved safety margin and suitable for both SMPS and solar inverter applications
Lowest conduction losses/package
Low switching losses
Better light load efficiency
Increasing power density
Outstanding CoolMOS™ quality
Target Applications:
Telecom
Server
Solar
PC power

Show

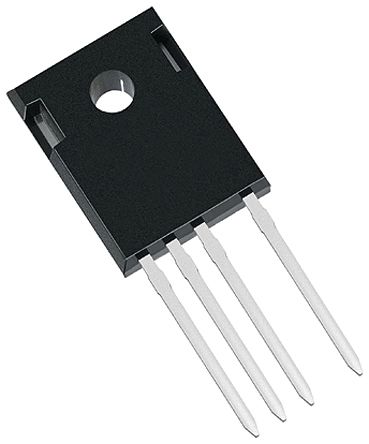

IPZ65R045C7 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	TO-247-4
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	40 mΩ
Polarity	N-CH
Power Dissipation	227 W
Threshold Voltage	3 V
Drain to Source Voltage (Vds)	700 V
Breakdown Voltage (Drain to Source)	650 V
Continuous Drain Current (Ids)	46A
Rise Time	14 ns
Input Capacitance (Ciss)	4340pF @400V(Vds)
Fall Time	7 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	227 W
	Show
Size-Length	16.13 mm
Size-Width	5.21 mm
Size-Height	21.1 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
