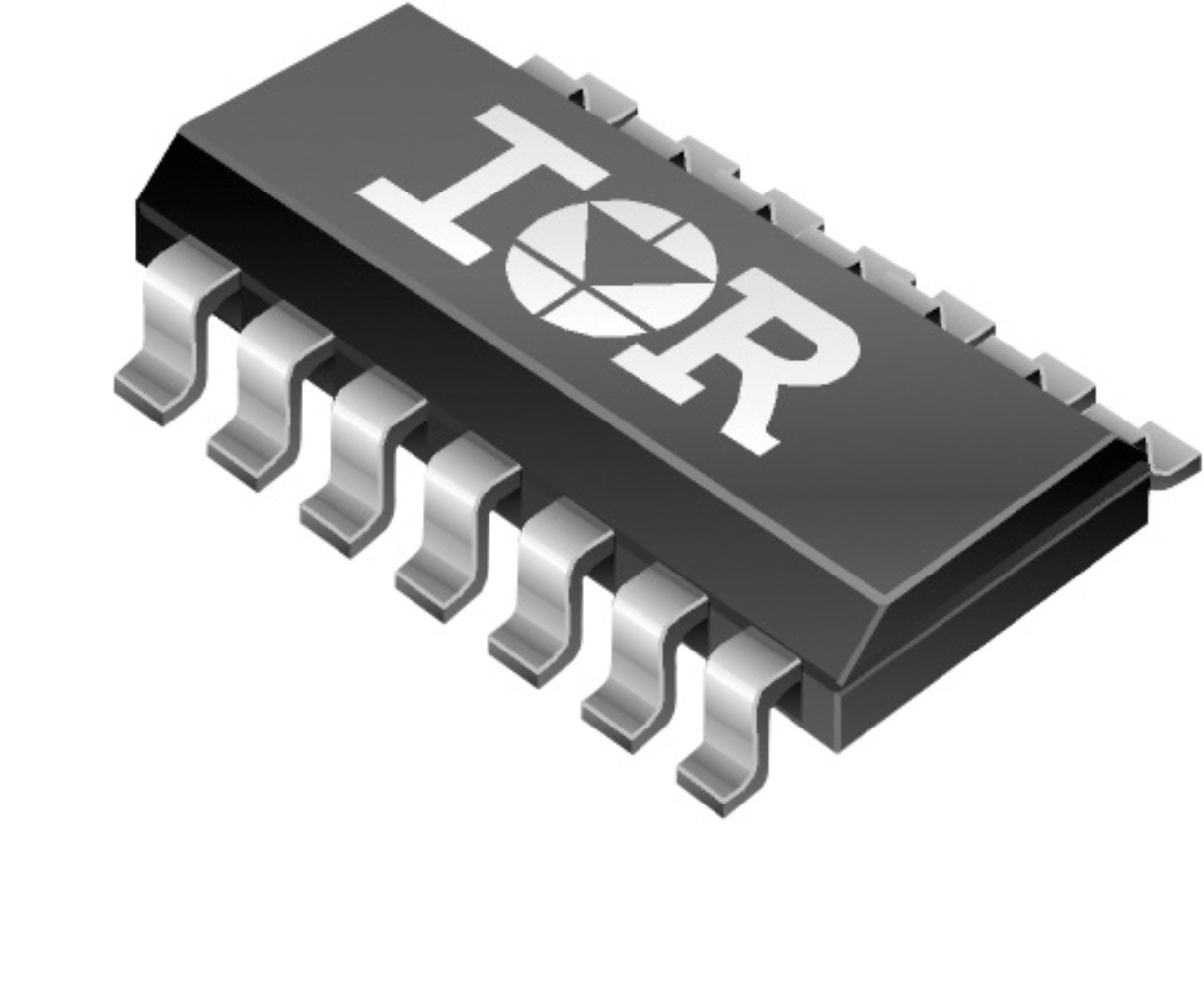

Image is for your reference only,please check specifications for details
- IR21064STRPBF - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC41515200
-
Category:FET Driver
-
Package:SOIC-14
-
Datasheet:Datasheet 3D Model
-
Description:ИС драйвера верхнего и нижнего ключей на 600В с типовыми токами источника 0.2А и стока 0.35А в корпусе SOIC с 14 выводами для IGBT и MOSFET. Также доступна в корпусах PDIP с 14 выводами, SOIC с 8 выводами и PDIP с 8 выводами.
-
Stock Locations:
-
Availability:2,228 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.9
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Сводка характеристик:
- Плавающий канал, предназначенный для работы с самоподзарядкой (bootstrap)
- Полностью работоспособен до +600 В
- Устойчив к отрицательным переходным напряжениям
- Устойчив к dV/dt
- Диапазон напряжения питания драйвера затвора от 10 до 20 В
- Блокировка при пониженном напряжении для обоих каналов
- Совместим с логическими входами 3,3 В, 5 В и 15 В
- Согласованная задержка распространения для обоих каналов
- Смещение между логической и силовой землей +/- 5 В
- Драйвер затвора с меньшим di/dt для лучшей помехоустойчивости
- Выходы синфазны входам
IR21064STRPBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 14 Pin |
| Case/Package | SOIC-14 |
| Rise/Fall Time | 150ns, 50ns |
| Number of Outputs | 2 Output |
| Power Dissipation | 1000 mW |
| Fall Time (Max) | 80 ns |
| Rise Time (Max) | 220 ns |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1000 mW |
| Supply Voltage | 10V ~ 20V |
| Show | |
| Size-Length | 8.65 mm |
| Size-Width | 3.9 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
