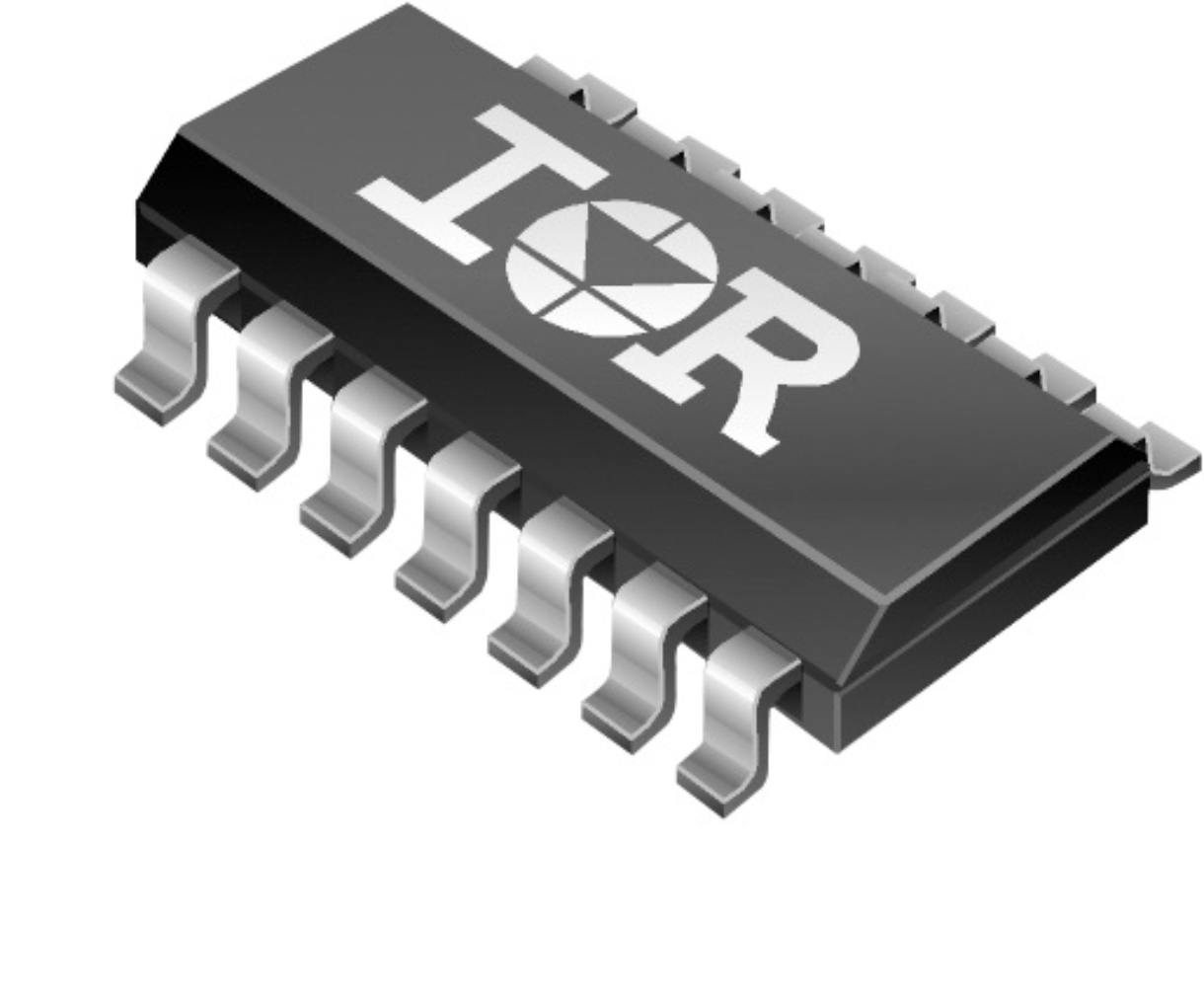

- IR21814S - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC170866066
-
Category:FET Driver
-
Package:SOIC-14
-
Datasheet:Datasheet 3D Model
-
Description:600V High and Low Side Driver IC with typical 1.9A source and 2.3A sink currents in 14 Lead SOIC package for IGBTs and MOSFETs. Also available in 14 Lead PDIP, 8 Lead SOIC, and 8 Lead PDIP.
-
Stock Locations:
-
Availability:318 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 04/05/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Floating channel designed for bootstrap operation
- Fully operational to +600 V
- Tolerant to negative transient voltage
- dV/dt immune
- Gate drive supply range from 10 to 20 V
- Undervoltage lockout for both channels
- 3.3 V and 5 V input logic compatible
- Matched propagation delay for both channels
- Logic and power ground +/- 5 V offset
- Lower di/dt gate driver for better noise immunity
- Output source/sink current capability 1.4A/1.8A
IR21814S Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 14 Pin |
| Case/Package | SOIC-14 |
| Supply Voltage (DC) | 20.0V (max) |
| Rise/Fall Time | 40ns, 20ns |
| Number of Outputs | 2 Output |
| Output Voltage | ≥10.0 V |
| Part Family | IR21814 |
| Supply Voltage | 10V ~ 20V |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Obsolete |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
