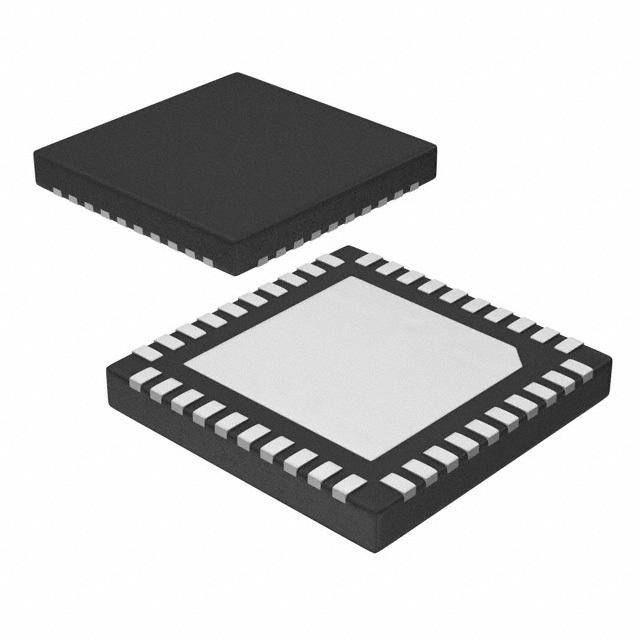

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Benefits:
5-phase dual output PWM Controller
Phases are flexibly assigned between Loops 1 and 2
Intel® VR12, AMD® SVI/G34 and Memory modes
Switching frequency from 200kHz to 1.2MHz per phase
Efficiency Shaping Features including Variable Gate Drive and Dynamic Phase Control
Programmable 1-phase or 2-phase for Light Loads Adaptive Transient Algorithm (ATA) on both loops minimizes output bulk capacitors and system cost
Auto-Phase Detection with auto-compensation
Per-Loop Fault Protection: OVP, UVP, OCP, OTP, CFP
I2C/SMBus/PMBus system interface for telemetry
Non-Volatile Memory (NVM) for custom configuration
Compatible with Active Tri-Level (ATL) and 3.3V tri-state Drivers
+3.3V supply voltage 0°C to 85°C ambient operation
Pb-Free, RoHS, 6x6 40 pin QFN package

Show

IR3541MTRPBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	40 Pin
Case/Package	QFN-40
Frequency	1.2 MHz
Supply Voltage (DC)	3.30V (max)
Number of Outputs	2 Output
Number of Positions	40 Position
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-20 ℃
Supply Voltage (Max)	3.3 V
Input Voltage	3.3 V
	Show
Operating Temperature	-20℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
