Description
- Benefits:
- Integrated driver, Schottky diode, control MOSFET and synchronous MOSFET
- 5mV / A on-chip MOSFET current sensing with temperature compensated reporting
- Input voltage (VIN) range of 4.5V to 15V
- VCC and VDRV supply of 4.5V to 7V
- Output voltage range from 0.25V up to 5.5V
- Output current capability of 60A
- Operation up to 1.0MHz
- VCC under voltage lockout (UVLO)
- 8mV / oC temperature analog output and thermal flag pull-up to 3.3V
- Over temperature protection (OTP)
- Cycle-by-cycle self-preservation over current protection (OCP)
- MOSFET phase fault detection and flag
- Preliminary overvoltage protection (Pre-OVP)
- Compatible with 3.3V tri-state PWM Input
- Body-Braking™ load transient support through PWM Tri-state
- Diode emulation mode (DEM) for improved light load efficiency
- Efficient dual sided cooling
- Small 6mm x 6mm x 0.9mm PQFN package
- Lead free RoHS compliant package

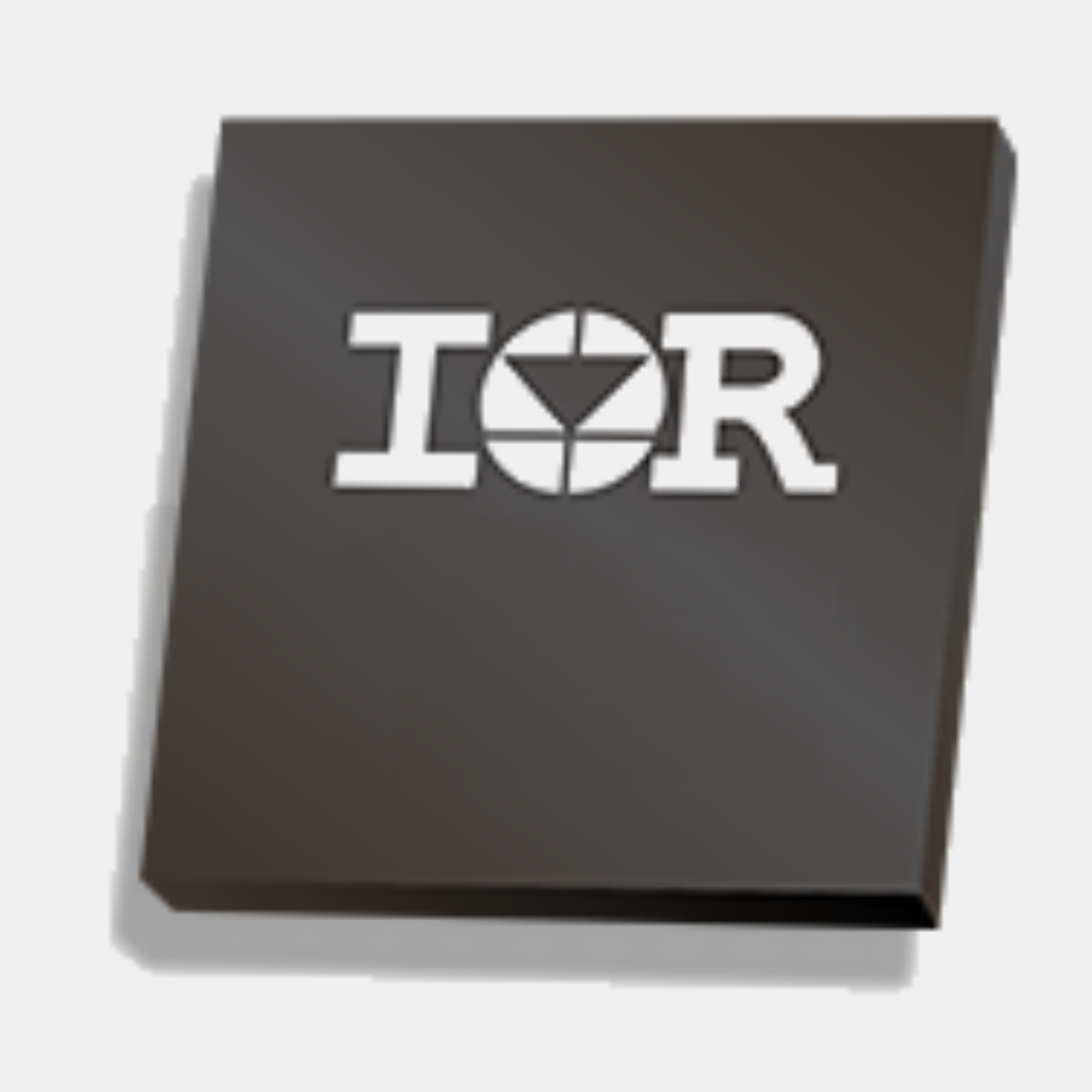

IR3555MTRPBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 32 Pin |
| Case/Package | PowerVFQFN-30 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.25V ~ 5.5V |
| Output Current | 60 A |
| Number of Positions | 30 Position |
| Input Voltage (Max) | 15 V |
| Input Voltage (Min) | 4.5 V |
| Output Voltage (Max) | 5.5 V |
| Output Voltage (Min) | 250 mV |
| Supply Voltage | 4.5V ~ 7V |
| Input Voltage | 4.5V ~ 15V |
| Show | |
| Size-Length | 6 mm |
| Size-Width | 6 mm |
| Size-Height | 0.75 mm |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
