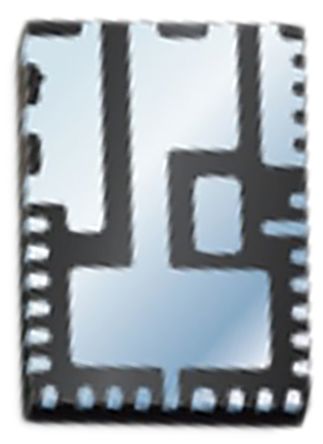

Image is for your reference only,please check specifications for details
- IR38062MTRPBF - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC57731276
-
Category:DC to DC Converter
-
Package:QFN-34
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 5.5V to 21V Synchronous Step Down Single-Out 0.5V to 18.375V 15A 26Pin PQFN T/R
-
Stock Locations:
-
Availability:250 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.25
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- IR38062 Series 21 V 15 A 1.65 MHz SMT Digital DC/DC Converter - PQFN-5x7
IR38062MTRPBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 26 Pin |
| Case/Package | QFN-34 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.5V ~ 18.375V |
| Output Current | 15 A |
| Number of Positions | 26 Position |
| Switching Frequency | 400kHz ~ 1.5MHz |
| Input Voltage (Max) | 21 V |
| Input Voltage (Min) | 1.2 V |
| Output Voltage (Max) | 18.38 V |
| Output Voltage (Min) | 0.5 V |
| Output Current (Max) | 15 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 1.2V ~ 21V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 7 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | -40℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Yes |
| Packaging | Tape & Reel (TR) |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Lead Free |
