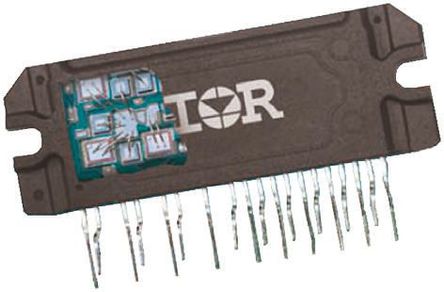

Image is for your reference only,please check specifications for details

IRAMX16UP60B - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC41733744
Category:
Motor Driver
Package:
SIP-2
Datasheet:
Datasheet 3D Model
Description:
Controller, Motion; DIP; 25; 20V; 600V; 16A; 465muJ; 3W; 150℃; 165muA; 20 + 0.3V
Stock Locations:
Availability:
352 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 27.12

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

IRAMX16UP60B is a iMOTION series 16A, 600V integrated power hybrid IC with internal shunt resistor for appliance motor drives applications and compressor drivers. It offers an extremely compact, high performance AC motor driver in a single isolated package to simplify design. This advanced HIC is a combination of low VCE(on) punch through IGBT technology and the industry benchmark 3 phase high voltage, high speed driver in a fully isolated thermally enhanced package. A built in temperature monitor and over current protection, along with the short circuit rated IGBTs and integrated under voltage lockout function, deliver high level of protection and fail safe operation. Using a single in line package (SiP2) with full transfer mould structure minimizes PCB space and resolve isolation problems to heat sink.
Internal shunt resistor
Integrated gate drivers and bootstrap diodes
Temperature monitor
Under voltage lockout for all channels
Matched propagation delay for all channels
Schmitt triggered input logic
Cross conduction prevention logic
Lower di/dt gate driver for better noise immunity
Motor power range 0.75KW to 2.2KW/85Vac to 253Vac
Isolation 2000VRMS/min

Show

IRAMX16UP60B Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	23 Pin
Case/Package	SIP-2
Frequency	20 KHz
Operating Voltage	12V ~ 20V
Number of Outputs	3 Output
Output Voltage	450 V
Output Current	16 A
Supply Current	165 μA
Number of Channels	3 Channel
Power Dissipation	3 W
Isolation Voltage	2000 Vrms
Switching Frequency	20.0 kHz
Breakdown Voltage (Collector to Emitter)	600 V
Input Bias Current	200 μA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Junction Temperature (Max)	150 ℃
Supply Voltage	12.20 VDC
	Show
Size-Length	62 mm
Size-Width	5.5 mm
Size-Height	25.8 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Last Time Buy
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
