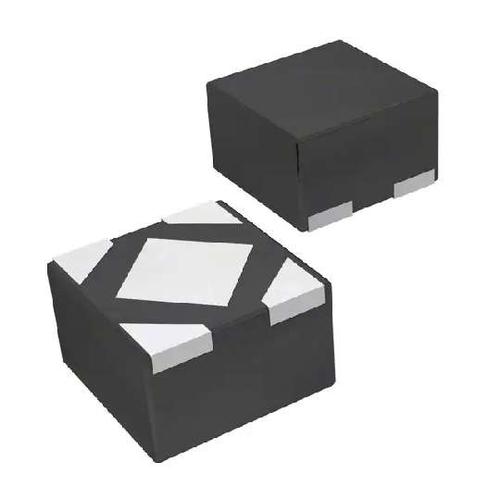

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCP170 series of CMOS low dropout regulators are designed specifically for portable battery-powered applications which require ultra-low quiescent current. The ultra-low consumption of typ. 500 nA ensures long battery life and dynamic transient boost feature improves device transient response for wireless communication applications. The device is available in small 1 × 1 mm xDFN4 and SOT-563 packages.
Features | | Benefits
---|---|---
| | | | |
Ultra Low Quiescent current 500nA
| |
Improved battery life
Very Low Dropout, 170mV at 150mA
| |
Low power dissipation at full load
Adaptive ground current proportional to load current
| |
Improved battery life
Wide Input Voltage Range 2.2V to 5.5V
| |
Suitable for battery powered applications
Small packages 1x1 mm XDFN4, SOT-563 and TSOP-5
| |
Reduced area for space constraint applications
Factory trimmed High output Voltage Accuracy +/- 1%
| |
Improved end product peformance

Show

NCP170BMX330TCG Specifications
