Description
- The NexFET™ power MOSFET has been designed to minimize losses in power conversion applications and optimized for 5V gate drive applications.
- Optimized for 5V Gate Drive
- Ultralow Qg and Qgd
- Low Thermal Resistance
- Avalanche Rated
- Pb Free Terminal Plating
- RoHS Compliant
- Halogen Free
- SON 5-mm × 6-mm Plastic Package
- APPLICATIONS
- Point-of-Load Synchronous Buck in Networking,
- Telecom and Computing Systems
- Synchronous or Control FET Applications
- NexFET is a trademark of Texas Instruments.

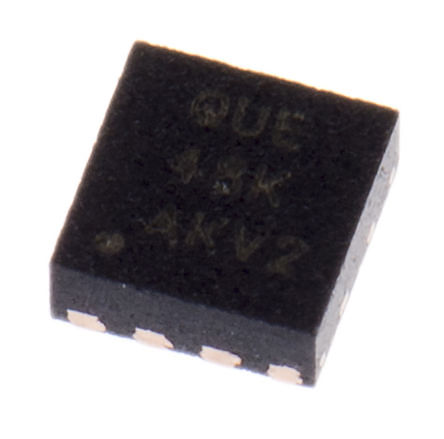

CSD16322Q5 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | VSON-Clip-8 |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Drain to Source Resistance (on) (Rds) | 0.0039 Ω |
| Polarity | N-Channel |
| Power Dissipation | 3.1 W |
| Threshold Voltage | 1.1 V |
| Drain to Source Voltage (Vds) | 25 V |
| Breakdown Voltage (Drain to Source) | 25 V |
| Continuous Drain Current (Ids) | 97.0 A |
| Rise Time | 10.7 ns |
| Input Capacitance (Ciss) | 1365pF @12.5V(Vds) |
| Input Power (Max) | 3.1 W |
| Fall Time | 3.7 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 3.1W (Ta) |
| Show | |
| Size-Length | 6.1 mm |
| Size-Width | 5 mm |
| Size-Height | 1.05 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
