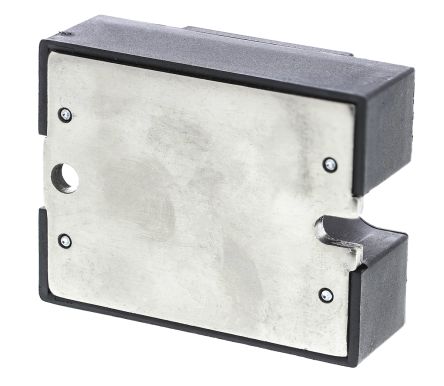

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **7-40 Amp; 0-500 VDC; DC Output**
- DC output relays feature MOSFET technology for low on-state resistance, assuring easy paralleling and switching capabilities to 40 A at 100 VDC. Lower current models are also available to 500 VDC. All models come in Crydom’s standard panel-mount package.*Operating Temperature Range: **–30°C to 80°C. **Isolation Voltage (VAC): **2500.
- **Features:**
- * DC Output, Low On-State Resistance
- * Paralleling Capability for Higher Currents
- * UL Approved on 100 V Models Only
D1D60 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | Hockey Puck |
| Operating Voltage | 100V (max) |
| Current Rating | 60 A |
| Output Voltage | 0V ~ 100V |
| Output Current | 60000 mA |
| Contacts Type | SPST-NO |
| Load Current | 60 A |
| Input Current | 28 mA |
| Isolation Voltage | 2500 v |
| Input Voltage (Max) | 32 V |
| Input Voltage (Min) | 3.5 V |
| Output Voltage (Max) | 100 V |
| Output Current (Max) | 60 A |
| Input Current (Min) | 28 mA |
| Load Current (Max) | 60 A |
| Load Current (Min) | 5 mA |
| Operating Temperature (Max) | 80 ℃ |
| Operating Temperature (Min) | -30 ℃ |
| Voltage Rating | 100 VDC |
| Operating Voltage (Min) | 0 VDC |
| Operating Voltage (Max) | 100 VDC |
| Input Voltage | 3.5VDC ~ 32VDC |
| Show | |
| Size-Length | 58.4 mm |
| Size-Height | 22.9 mm |
| Operating Temperature | -30℃ ~ 80℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8536490080 |
| ECCN Code | EAR99 |
