Description
- Benefits:
- Ultra-low RDS(on)
- Low Profile (less than 0.7 mm)
- Dual Sided Cooling Compatible
- Ultra-low Package Inductance
- Optimized for high speed switching or high current switch (Power Tool)
- Low Conduction and Switching Losses
- Compatible with existing Surface Mount Techniques
- StrongIRFET™

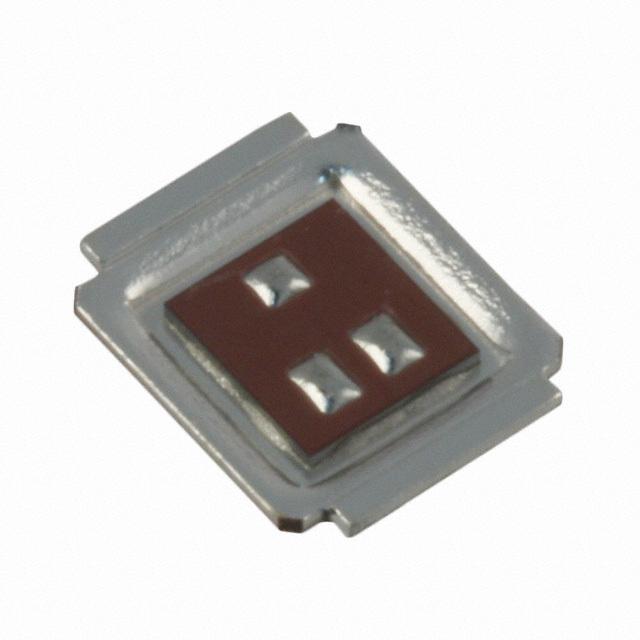

IRF8301MTRPBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 7 Pin |
| Case/Package | Direct-FET |
| Power Rating | 89 W |
| Number of Positions | 7 Position |
| Drain to Source Resistance (on) (Rds) | 0.0013 Ω |
| Polarity | N-Channel |
| Power Dissipation | 89 W |
| Threshold Voltage | 1.7 V |
| Drain to Source Voltage (Vds) | 30 V |
| Continuous Drain Current (Ids) | 34A |
| Rise Time | 30 ns |
| Input Capacitance (Ciss) | 6140pF @15V(Vds) |
| Fall Time | 17 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 2.8W (Ta), 89W (Tc) |
| Show | |
| Size-Length | 6.35 mm |
| Size-Width | 5.05 mm |
| Size-Height | 0.7 mm |
| Material | Silicon |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/12/17 |
