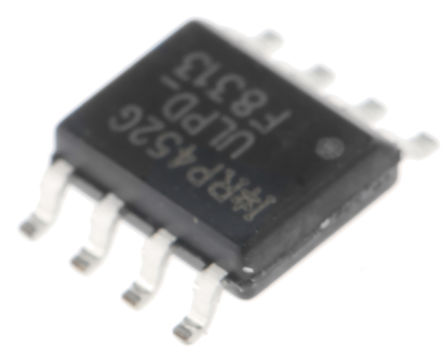

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

IRF8313PBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Power Rating	2 W
Polarity	N-Channel, Dual N-Channel
Power Dissipation	2 W
Part Family	IRF8313
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	8.10 A
Rise Time	9.9 ns
Input Capacitance (Ciss)	760pF @15V(Vds)
Input Power (Max)	2 W
Fall Time	4.2 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2 W
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Material	Silicon
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
ECCN Code	EAR99
