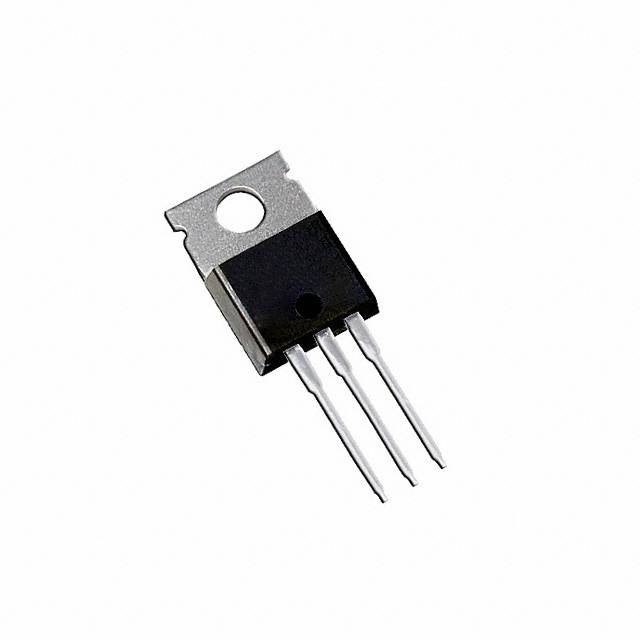

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Benefits:
- RoHS Compliant
- Industry-leading quality
- Fully Characterized Avalanche Voltage and Current
- Low Gate-to-Drain Charge to Reduce Switching Losses
- Fully Characterized Capacitance Including Effective Coss to Simplify Design
IRFB23N20D Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | TO-220-3 |
| Voltage Rating (DC) | 200 V |
| Current Rating | 24.0 A |
| Polarity | N-Channel |
| Power Dissipation | 3.8W (Ta), 170W (Tc) |
| Part Family | IRFB23N20D |
| Drain to Source Voltage (Vds) | 200 V |
| Breakdown Voltage (Drain to Source) | 200 V |
| Continuous Drain Current (Ids) | 24.0 A |
| Rise Time | 32.0 ns |
| Input Capacitance (Ciss) | 1960pF @25V(Vds) |
| Power Dissipation (Max) | 3.8W (Ta), 170W (Tc) |
| Show | |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
