Description
- Benefits:
- Low RDSon (less than 0.95 mOhms)
- Low Thermal Resistance to PCB (less than 0.8°C/W)
- Low Profile (less than 0.9 mm)
- Industry-Standard Pinout
- Compatible with Existing Surface Mount Techniques
- RoHS Compliant, Halogen-Free
- MSL1, Industrial Qualification
- FastIRFET™

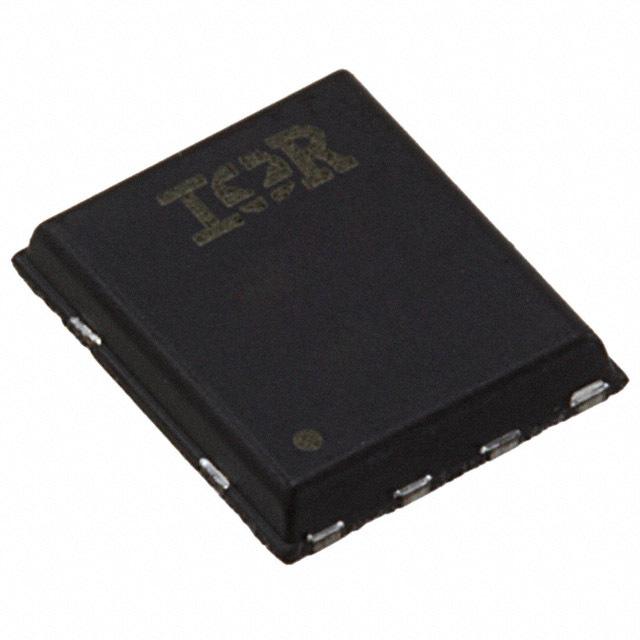

IRFH4201TRPBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | PQFN-8 |
| Power Rating | 3.5 W |
| Number of Positions | 5 Position |
| Polarity | N-Channel |
| Power Dissipation | 3.5 W |
| Threshold Voltage | 1.6 V |
| Drain to Source Voltage (Vds) | 25 V |
| Continuous Drain Current (Ids) | 49A |
| Rise Time | 43 ns |
| Reverse recovery time | 31 ns |
| Maximum Forward Voltage (Max) | 1 V |
| Input Capacitance (Ciss) | 6100pF @13V(Vds) |
| Fall Time | 19 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 3.5W (Ta), 156W (Tc) |
| Show | |
| Size-Length | 6 mm |
| Size-Width | 5 mm |
| Size-Height | 0.83 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
