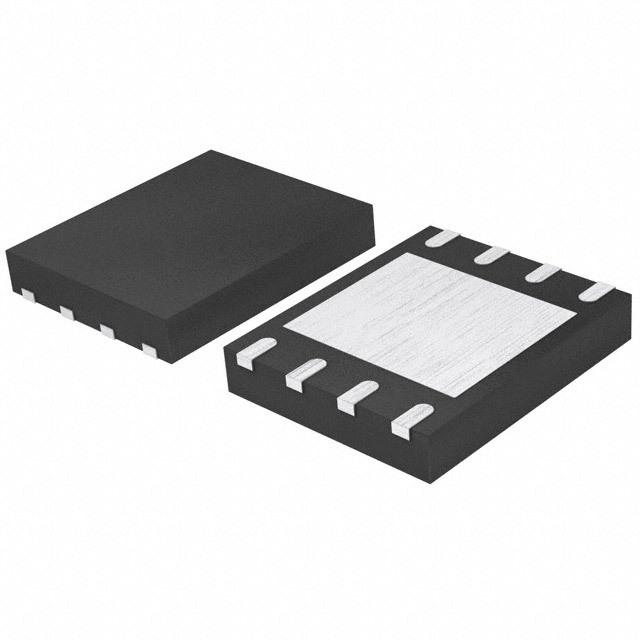

Image is for your reference only,please check specifications for details
Updated at 25/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Benefits:
- RoHS Compliant
IRFH5015TRPBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | PQFN-8 |
| Power Rating | 250 W |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Drain to Source Resistance (on) (Rds) | 0.0255 Ω |
| Polarity | N-Channel |
| Power Dissipation | 3.6 W |
| Threshold Voltage | 5 V |
| Input Capacitance | 2300 pF |
| Drain to Source Voltage (Vds) | 150 V |
| Breakdown Voltage (Drain to Source) | 150 V |
| Continuous Drain Current (Ids) | 10A |
| Rise Time | 9.7 ns |
| Input Capacitance (Ciss) | 2300pF @50V(Vds) |
| Fall Time | 3.4 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | 55 ℃ |
| Power Dissipation (Max) | 3.6W (Ta) |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 5 mm |
| Size-Height | 0.83 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/12/17 |
