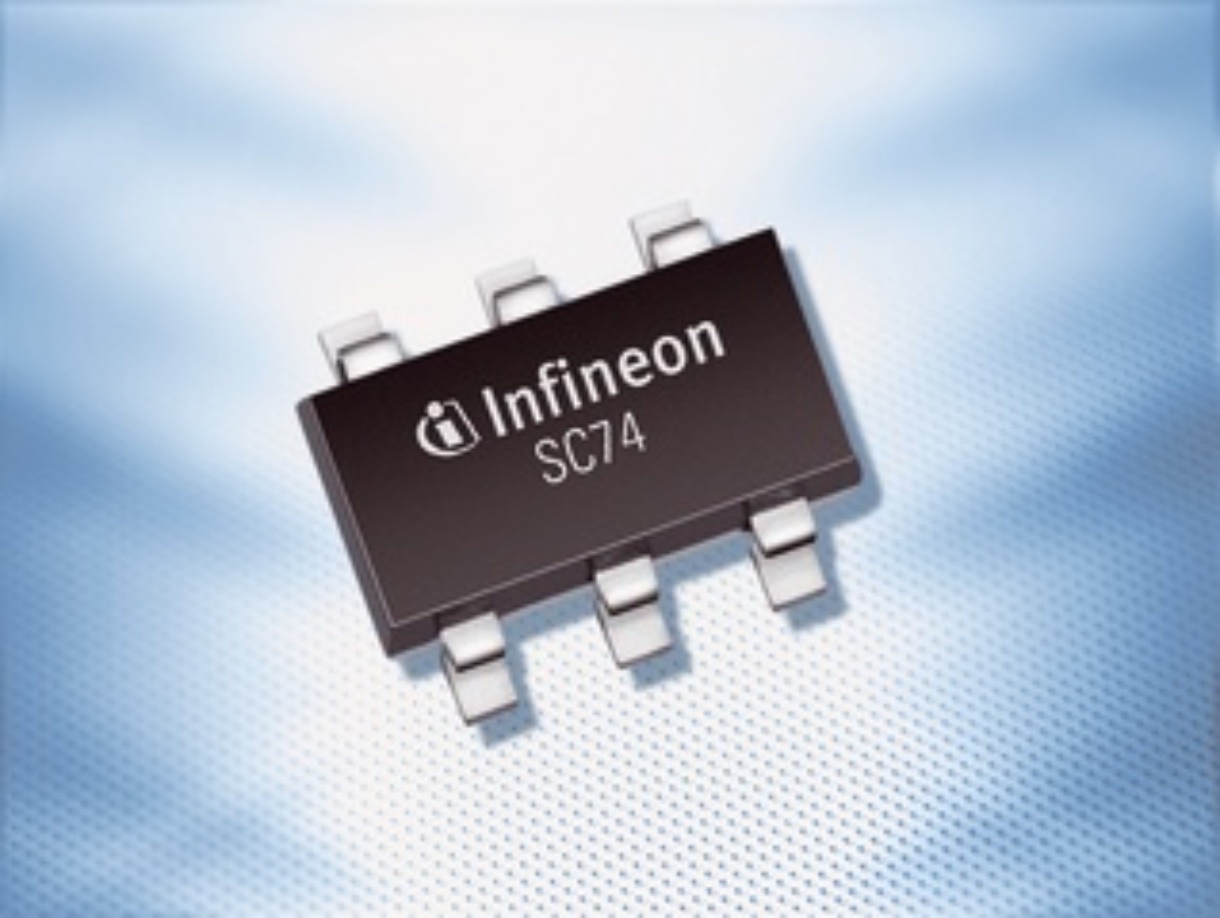

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Digital PWM dimming input up to 10kHz
- LED drive current preset to 10mA
- Continuous driving current up to 250mA
- Low side current control
- Supply voltage up to 25V +UfLED
- Up to 1W power dissipation in small SC74 pkg
- Automotive qualified according to AEC Q101
- Benefits:
- Dimmable
- Adjustable output current
- Negative thermal coefficient for over temperature protection
- Low voltage overhead of 1.4V
BCR321U Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 6 Pin |
| Case/Package | SC-74 |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 1.40V ~ 27.0V |
| Output Voltage | 1.40 V |
| Output Current | 250 mA |
| Number of Positions | 6 Position |
| Input Voltage | 16VDC ~ 25VDC |
| Show | |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
